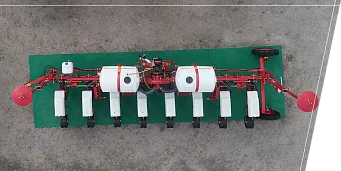

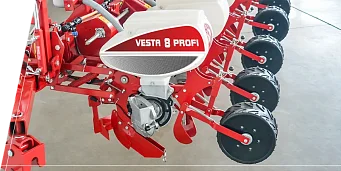

VESTA 8 PROFI WITH A DEVICE FOR APPLYING LIQUID COMPLEX FERTILIZERS

A new level of seed placement accuracy for dry regions.
VESTA 8 PROFI WITH A DEVICE FOR APPLYING LIQUID COMPLEX FERTILIZERS
VESTA 8 PROFI WITH A DEVICE FOR APPLYING LIQUID COMPLEX FERTILIZERS image
  • Description
  • TECHNICAL DATA
  • VESTA 8 PROFI WITH A DEVICE FOR APPLYING LIQUID COMPLEX FERTILIZERS

    TECHNICAL DATA

    VESTA air seeder 8 PROFI is designed for precision seeding on traditional cultivation techniques. Provides sowing of seeds with the simultaneous introduction of liquid complex fertilizers and rolling of the soil in the sown rows.

    Created taking into account modern design solutions that make it possible to significantly reduce the cost of agricultural products on the market.
    Liquid complex fertilizers.

    Liquid fertilizers are much easier to make the soil than granulated. They are introduced into the soil in the fall for the main cultivation or in the spring for pre-sowing cultivation. Also used for root and foliar feeding during the growing season of plants.

    Liquid complex fertilizers (LCF) - simple and easy to use, moreover, they are relatively inexpensive. These fertilizers can be used in combination with pesticides, which can significantly save money on fuel. When using liquid complex fertilizers, losses are no more than 10%, while when using other fertilizers this figure can reach 30-40%

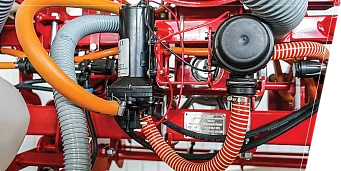

    ELECTRO PUMP


With the help of an electric pump with a productivity of 21 l/min, made by Pentair, connected to the tractor's energy system, liquid
    ELECTRO PUMP

    With the help of an electric pump with a productivity of 21 l/min, made by Pentair, connected to the tractor's energy system, liquid fertilizers are supplied through a filter from the tank to 3 adjustable valves, one main and two additional ones.

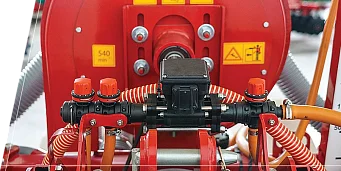

VALVES
    VALVES

    With the help of valves and a set of washers of various diameters, the fertilizer delivery rate is set for each line. Excess liquid is returned to the tank through a reversible feed system.

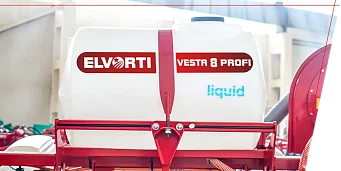

PLASTIC TANKS FOR LCD


VESTA 8 PROFI seeder has a total capacity of tanks for liquid complex fertilizers of 500 liters (250x2).A tap is provided
    PLASTIC TANKS FOR LCD

    VESTA 8 PROFI seeder has a total capacity of tanks for liquid complex fertilizers of 500 liters (250x2).A tap is provided at the bottom of the main tank for draining the remaining liquid fertilizers.

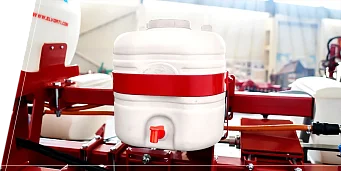

ADDITIONAL TECHNICAL WATER TANK


A plastic tank for transporting clean service water is located separately on the frame.
    ADDITIONAL TECHNICAL WATER TANK

    A plastic tank for transporting clean service water is located separately on the frame.


Application of liquid fertilizers
    Application of liquid fertilizers

    Liquid fertilizer is delivered through a hose with a metal tip located between the skid opener and the press rollers.


SEEDING SECTION VESTA PROFI


Low positioning of the seeding unit - due to the minimum distance from the point of dropping the seeds to the seedi
    SEEDING SECTION VESTA PROFI

    Low positioning of the seeding unit - due to the minimum distance from the point of dropping the seeds to the seeding bed, the accuracy of seed placement in the row is ensured.

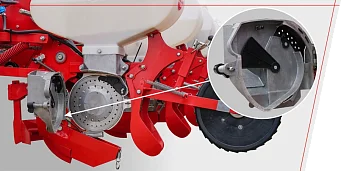

Planting unit PROFI

• Provides accurate single-grain dosing and sowing of seeds;
• Availability of upper and lower adjustable dumpers of excess
    Planting unit PROFI

    • Provides accurate single-grain dosing and sowing of seeds;
    • Availability of upper and lower adjustable dumpers of excess seeds - no doubles;
    • Easy and convenient maintenance without tools;
    • No load on the housing of the sowing device - durability of the sowing device.

    TWO-CIRCUIT DRIVE


Sowing section was equipped with a 2-contour drive units. Reliable protection of the drive units ensures work on the  fields c

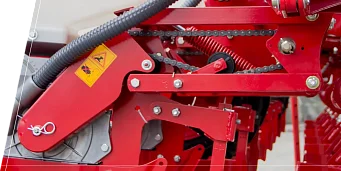

    TWO-CIRCUIT DRIVE

    Sowing section was equipped with a 2-contour drive units. Reliable protection of the drive units ensures work on the fields clogged with plant residues.

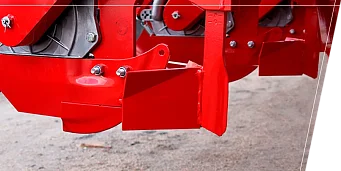

    ADJUSTABLE LUMP DISPOSAL


Adjustable LUMP DISPOSAL allows hanging even jnthe  fields with plant debris and clods of soil.
    ADJUSTABLE LUMP DISPOSAL

    Adjustable LUMP DISPOSAL allows hanging even jnthe fields with plant debris and clods of soil.

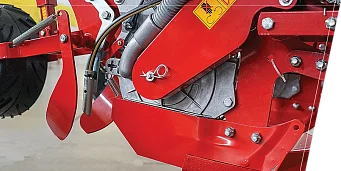

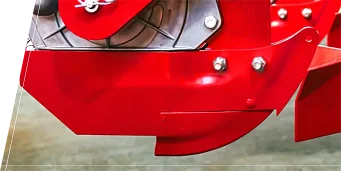

    SLIDING SEED COULTER


Seeders VESTA 8 PROFI are equipped with universal skid-shaped seed openers with replaceable
    SLIDING SEED COULTER

    Seeders VESTA 8 PROFI are equipped with universal skid-shaped seed openers with replaceable "heel" for sowing corn and sunflower seeds or sowing beet seeds. The skid-shaped seed coulter provides high-quality seed placement at the seeding depth, as well as the accuracy of seeding when the seeder is operating at the fields with high humidity.

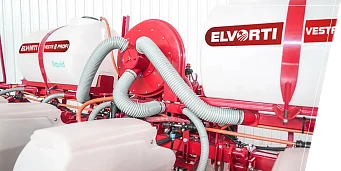

    RECEIVER


Tube frame that serves as a receiver design with individual access to the diagonal section provides uniform underpressure in all of the
    RECEIVER

    Tube frame that serves as a receiver design with individual access to the diagonal section provides uniform underpressure in all of the sowing apparatuses (allows to keep the seeds in heavy holes sowing disc end sections), thereby allowing to achieve a high quality of all the sowing row crops and other crops.

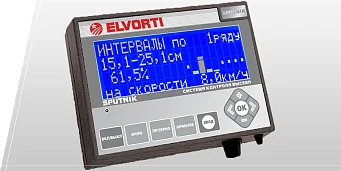

MULTIFUNCTIONAL INFORMATION DEVICE
    MULTIFUNCTIONAL INFORMATION DEVICE "SPUTNIK"

    It controls the passage of seeds in each opener, the speed of movement and transmits information to the monitor, allows keeping records of the sown area. This makes it possible to quickly correct deviations.

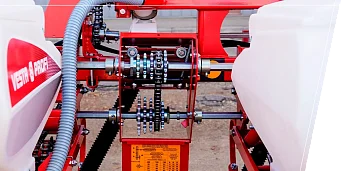

IMPROVED GEAR DESIGN


On the universal pneumatic seeder VESTA 8 PROFI, the design of the gear mechanism has been improved, which improves the ma
    IMPROVED GEAR DESIGN

    On the universal pneumatic seeder VESTA 8 PROFI, the design of the gear mechanism has been improved, which improves the maintainability of the unit and provides a wider range of seeding rates.

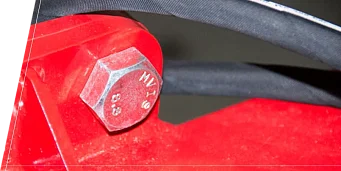

    HIGH-STRENGTH HARDWARE


The use of hardware with a strength class of at least 8.8 ensures reliability and durability of operation.
    HIGH-STRENGTH HARDWARE

    The use of hardware with a strength class of at least 8.8 ensures reliability and durability of operation.

    LIGHTWEIGHT FRAME DESIGN


	 Use of high-strength steel pipes of European design reduces frame weight while increasing its strength and rigidity, w
    LIGHTWEIGHT FRAME DESIGN

    Use of high-strength steel pipes of European design reduces frame weight while increasing its strength and rigidity, which reduces the fuel consumption of the tractor.

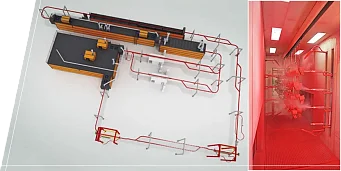

    POWDER COATING


	 The production line is equipped with a powder coating line Ideal-line (Denmark). This painting technology allows us to produce h
    POWDER COATING

    The production line is equipped with a powder coating line Ideal-line (Denmark). This painting technology allows us to produce high-quality paintwork with a warranty period of more than 8 years.

    FUEL CONSUMPTION


Fuel consumption when working with a 80 hp tractor is 2.8 l/ha.
    FUEL CONSUMPTION

    Fuel consumption when working with a 80 hp tractor is 2.8 l/ha.

  • Aggregate type mounted
    Operating width, m 5.6
    Driving speed, km/hr 2.5 - 9
    Number of rows, pcs. 8
    Performance, ha/hr 3.02 - 5.04
    Seeding depth of disc openers, mm 20 - 90
    Row spacing, mm 700
    Rate of application of the working fluid, l/ha 62 - 903
    Box capacity(total) for grains, l (dm³) 288 (36 х 8)
    Box capacity(total) for fertilizers, l (dm³) 500 (250 х 2)
    Overall dimensions for transport, mm 5 870 х 2 010 х 1 840
    Overall dimensions in position, mm 2 355 х 5 270 х 1 445
    Aggregated with tractors, max, hp 80
    Constructional weight, kg 1 278

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
