VESTA 8 PROFI

Pneumatic seeder for precision laying of seeds using traditional soil tillage technology
VESTA 8 PROFI 360 grad view
VESTA 8 PROFI image
VESTA 8 PROFI image
VESTA 8 PROFI image
VESTA 8 PROFI video
VESTA 8 PROFI video
VESTA 8 PROFI video
VESTA 8 PROFI video
  • Description
  • TECHNICAL DATA
  • VESTA 8 PROFI is a pneumatic precision air seeder with a high level of seed placement accuracy using conventional tillage technology. Its main characteristics are ease of use, precision and reliability.

    MULTIFUNCTIONAL INFORMATION DEVICE
    MULTIFUNCTIONAL INFORMATION DEVICE

    It controls the passage of seeds in each opener, the speed of movement and transmits information to the monitor, allows keeping records of the sown area. This makes it possible to quickly correct deviations.

    SEEDING SECTION VESTA PROFI
    SEEDING SECTION VESTA PROFI

    Low positioning of the seeding unit - due to the minimum distance from the point of dropping the seeds to the seeding bed, the accuracy of seed placement in the row is ensured.

    • Provides accurate single-grain dosing and sowing of seeds;

    • Availability of upper and lower adjustable dumpers of excess seeds - no doubles;

    • Easy and convenient maintenance without tools;

    • No load on the housing of the sowing device - durability of the sowing device.



    SEEDING UNIT PROFII

    The sowing unit, made by injection molding from durable aluminum alloys, provides precise single-grain seed dosing; its features are as follows:

    • the presence of upper and lower adjustable seed ejectors eliminates presence of duplicate seeds;

    • the amount of seeds falling from the hopper into the seeding chamber is regulated by a flap;

    • easy and convenient maintenance without tools;

    • quick-release tedder installed on the seeding disc prevents compaction of seeds and getting stuck in the chamber of the sowing unit;

    • the presence of a viewing window provides ease of adjustment;

    • sealing gasket is built into the body, and it has a lip, the erasure of which signals the need to replace it;

    • the sowing unit is mounted on a frame, which eliminates the influence of loads on it and guarantees durability of use;

    • the presence of an unloading window ensures complete unloading of seeds after work;

    • the presence of seeding discs of increased diameter allows to improve the quality of seed placement;

    • installation of the rotation shaft of the seeding discs on rolling bearings with hightened dust protection increases service life.

    TWO-CIRCUIT DRIVE
    TWO-CIRCUIT DRIVE

    Sowing section was equipped with a 2-contour drive. Reliable drive protection provides work in the fields, weedy plant residues.


    Clod remover
    Clod remover

    The installed clod remover allows sowing even in fields with crop residues and clods.

    Skid coulter with replaceable heel
    Skid coulter with replaceable heel

    The combined skid coulter ensures perfect furrow opening. Replacement of a worn heel is quick and easy, ensuring long life of coulter.

    Effective furrow closure
    Effective furrow closure

    The furrow closing mechanism returns the soil to the sown seeds, creating the best possible germination conditions for them.

    Press wheel
    Press wheel

    The press wheel gently compacts the soil in the furrow, improving seed contact and thus ensuring uniform seedlings. The adjustment screw knob sets the optimum seed placement depth from 4 - 12 cm.

    PLASTIC HOPPERS
    PLASTIC HOPPERS

    Seeder is equipped with plastic hoppers made of high quality polyethylene. This, in turn, provides a significantly lower hopper weight; resistance to various types of corrosion; and vibration resistance. In addition, these bins do not require periodic painting.

    VESTA 8 PROFI seeder has a total capacity of the seed hoppers – 288 l, and 320 l – for fertilizers. So, for example, at the seeding rate of corn – 5 seeds per 1 running meter- the seeder can sow 3.2 hectares without additional loading.

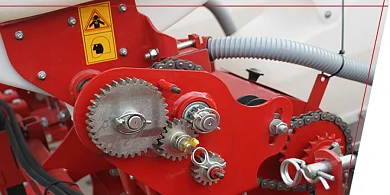

    5x5 star transmission mechanism
    5x5 star transmission mechanism

    A 5x5 star assembly unit has been installed, now the farmer has the opportunity to use a wider range of seeding rates due to a larger number of transmission ratios of the transmission mechanism stars.

    NEW SYSTEM FOR APPLYING DRY MINERAL FERTILIZERS
    NEW SYSTEM FOR APPLYING DRY MINERAL FERTILIZERS

    This system represents polymer seeding units with polymer reels that are not subject to corrosion, and it enables to quickly and smoothly change the application rate by turning the adjustment knob. Thanks to this, there is no need in a device for changing fertilizer application rates.

    Fertiliser coulter
    Fertiliser coulter

    Fertiliser coulter is designed for furrow preparation, compaction of the furrow bottom and placement of fertiliser in the soil. It is suitable for well prepared soil and in particular for fine-grained soils with very little plant residues in the surface layer.

    Protective screen
    Protective screen

    The fertilizer bunker is equipped with a protective screen for fertilizers screening, which helps to prevent the ingress of stones and large objects that can disrupt the operation of the seeder.

    RECEIVER
    RECEIVER

    Tube frame that serves as a receiver design with individual access to the diagonal section provides uniform underpressure in all of the sowing apparatuses (allows to keep the seeds in heavy holes sowing disc end sections), thereby allowing to achieve a high quality of all the sowing row crops and other crops.

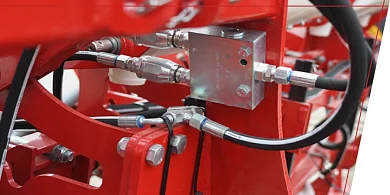

    HIGH PRESSURE SLEEVES, IMPROVED QUALITY
    HIGH PRESSURE SLEEVES, IMPROVED QUALITY

    Use of high-pressure hoses of improved quality with double swaging allows the drill to operate under more demanding conditions without the fear of hydraulic fluid leaks and breaks under high pressure.

    LIGHTWEIGHT FRAME DESIGN
    LIGHTWEIGHT FRAME DESIGN

    Use of high-strength steel pipes of European design reduces frame weight while increasing its strength and rigidity, which reduces the fuel consumption of the tractor.

    DRIVE WHEELS
    DRIVE WHEELS

    Drive wheels, mounted between the seed sections, ensure smooth transmission of torque through the gears and uniform movement of the drill.

    TRANSPORTATION DEVICE
    TRANSPORTATION DEVICE

    The transportation device in the basic configuration, provides additional protection against tire damage by plant stems and other objects on the surface of the field, with a transport width of 2.67 m allows you to move the seeder on public roads.

    RICH BASIC EQUIPMENT
    RICH BASIC EQUIPMENT

    • 4 sets of seeding discs;

    Sown crop Diameter of holes, mm Number of holes, pcs.
    Corn, castor oil plant, broad beans, beans  5.5  30
    Sorghum, sunflower (fines)  2.2  40
    Sunflower  3.0  30
    Corn
     4.0  30

    • A set of clodd up

    • Information device

    • Transportation device

    POWDER COATING
    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

    HIGH-STRENGTH HARDWARE
    HIGH-STRENGTH HARDWARE

    Usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

    FUEL CONSUMPTION
    FUEL CONSUMPTION

    Fuel consumption when working with a 80 hp tractor is 2.3 l/ha.

  • Aggregate type mounted
    Operating width, m 5.6
    Working speed, km/hr 2.5 - 9
    Number of rows, pcs. 8
    Capacity, ha/hour 3.02 - 5.04
    Seeding depth of disc openers, mm 20 - 90
    Row spacing, mm 700
    Seeding rate for fertilizers, kg/ha 54 - 536
    Box capacity(total) for grains, l (dm³) 288 (36 х 8)
    Box capacity(total) for fertilizers, l (dm³) 320 (80 х 4)
    Overall dimensions for transport, mm 5 870 х 2 010 х 1 840
    Overall dimensions in position, mm 2 355 х 5 270 х 1 445
    Coupled with tractors with power, more than h.p. 80
    Weight, kg 1 430 ± 3%

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
