ALTAIR 5.6 WITHOUT FEEDING

ALTAIR 5.6 for processing 8-row crops of corn, sunflower and other crops sown with rows of 70 cm.
ALTAIR 5.6 WITHOUT FEEDING image
  • Description
  • TECHNICAL DATA
  • ALTAIR 5.6 WITHOUT FEEDING

    TECHNICAL DATA

    ELVORTI ™ appliances are quality time-tested appliances. ELVORTI ™ products are manufactured from high strength steel according to European standards. As a result, buying ELVORTI ™, you get 50% more in terms of rigidity, strength and elasticity of the structure, which significantly increases the service life of the units.

    ALTAIR is a range of cultivators designed for inter-row cultivation of row crops with simultaneous application of granular mineral fertilizers. Provides high-quality loosening of the soil in the aisles to a given depth with the destruction of weeds.

    The presence of a transport device allows the cultivator to be transported by general-purpose roads with a width of 2.1 m.

    There is a variant of using the cultivator for continuous cultivation with razor paws, as well as for hilling. Steel holders of the tines of the shares withstand significant loads.

    The rotation from the support-drive wheels is transmitted to the shaft of the fertilizer dispenser. The seeding rate of fertilizers is set using gear mechanisms. The universal design of the wheel drive makes it easy to transfer the cultivator from the working position to the transport one.

    An unloading hatch is provided in the fertilizer hopper to remove the residues of mineral fertilizers.

    PARALLELOGRAM SUSPENSION ...

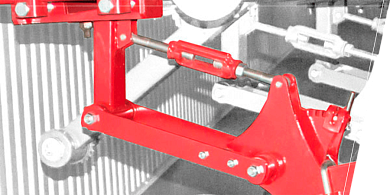

    PARALLELOGRAM SUSPENSION OF SECTIONS

    Rigid parallelogram suspension of the sections of the working bodies precludes damage to crops and ensures copying of the soil relief. All units are made of European steels and mounted on sealed rolling bearings, which increases the unit's service life.

    OWN TOWELS

Wear-resist...

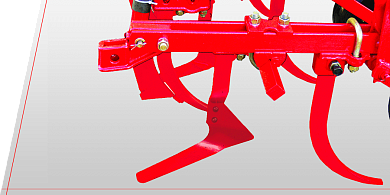

    OWN TOWELS

    Wear-resistant tines of our own production are installed on the ALTAIR inter-row cultivators, special boron steel is used for their manufacture, which made it possible to increase the service life of the tines by 100%. Steel holders of the tines of the shares withstand significant loads.

    LIGHTWEIGHT FRAME DESIGN
...

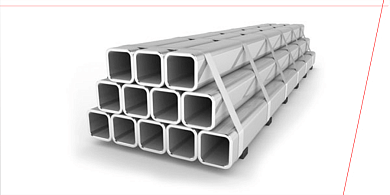

    LIGHTWEIGHT FRAME DESIGN

    The usege of high-strength pipes of European steels allows to reduce the weight of the frame structure, while increasing its strength and rigidity, which leads to decreasing tractor fuel consumption.

    POWDER COATING

Product...

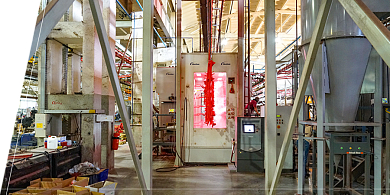

    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

    HIGH-STRENGTH HARDWARE

...

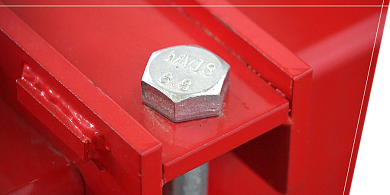

    HIGH-STRENGTH HARDWARE

    Usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

    FUEL CONSUMPTION

Fuel ...
    FUEL CONSUMPTION

    Fuel consumption when working with a 80 hp tractor is 4.6 l/ha.

  • Aggregate type mounted
    Operating width, m 5.6
    Driving speed, km/hr 5 - 10
    Performance, ha/hr 2.8 - 5.6
    Row spacing, mm 700
    Number of rows, pcs. 8
    Tilling depth, mm 60 - 160
    Overall dimensions, mm 6500x2100x1700
    Aggregated with tractors, max, hp 80
    Constructional weight, kg 880

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
