ALTAIR 5.6-01 WITH A DEVICE FOR APPLYING LIQUID COMPLEX FERTILIZERS

The cultivator ALTAIR-5.6-01 with liquid fertilizers (liquid complex fertilizers) is intended for inter-row cultivation of row crops with simultaneous application of liquid fertilizers. Provides high-quality loosening of the soil in the aisles to a given depth with the destruction of weeds.
  • Description
  • Characteristics
  • The cultivator ALTAIR-5,6-01 with a basic set of working bodies and a device for introducing liquid fertilizers performs the following operations:

    - pruning weeds and loosening the soil in the aisles;

    - loosening of row spacing with chisel-shaped paws;

    - feeding plants with liquid complex fertilizers.

    A number of technical solutions make this versatile cultivator an indispensable tool for agricultural producers.

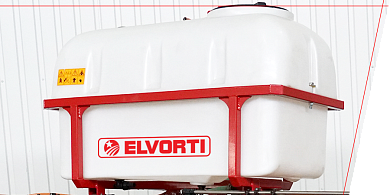

    LIQUID FERTILIZER TANK

    A 800 liter liquid fertilizer tank made of polymeric materials with smooth walls, which prevents the deposition of chemical sediment, at the bottom there is a tap for draining the remaining liquid fertilizers into the container.

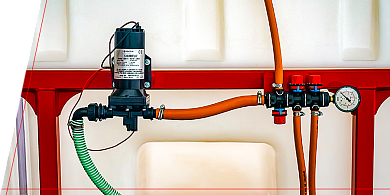

    DIAPHRAGM ELECTRIC PUMP 12 V

    Pump with a productivity of 21 l / min maintains a given rate of application of liquid fertilizers through a filter from a tank with 2 adjustable valves. With the help of valves, the rate of fertilization in each row is set and provides a rate of 30 to 450 l / ha, the excess liquid is returned back to the tank through a reversible feed system. The liquid fertilizer application system is connected to the 12 V power supply of the tractor.

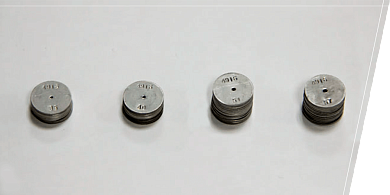

    4 SETS OF DRAIN WASHERS

    4 sets of drainage washers with different through-hole diameters provide liquid fertilizer supply to the cultivator tines funnels providing different rates of liquid fertilizer supply per 1 hectare.

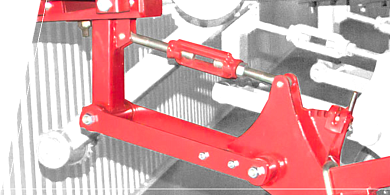

    PARALLELOGRAM SUSPENSION OF SECTIONS

    Rigid parallelogram suspension of the sections of the working bodies precludes damage to crops and ensures copying of the soil relief. All units are made of European steels and mounted on sealed rolling bearings, which increases the unit's service life.

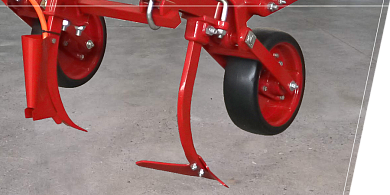

    RUBBER TIRES OF SECTION ROLLERS

    Rubber tires of the road rollers of the sections ensure their self-cleaning from the soil and maintain a given depth.

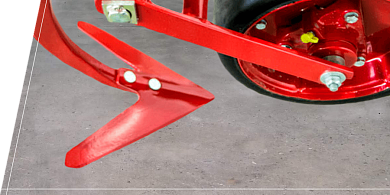

    OWN TOWELS

    Wear-resistant tines of our own production are installed on the ALTAIR inter-row cultivators, special boron steel is used for their manufacture, which made it possible to increase the service life of the tines by 100%. Steel holders of the tines of the shares withstand significant loads.

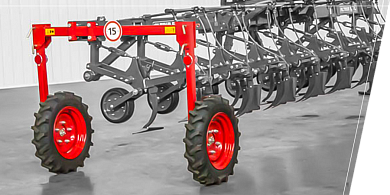

    TRANSPORTATION DEVICE

    Reliable transport device allows the cultivator to be transported on public roads with a width of 2.1 m

    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

    HIGH-STRENGTH HARDWARE

    Usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

    FUEL CONSUMPTION

    Fuel consumption when working with a 80 hp tractor is 4.6 l/ha.

  • Aggregate type mounted
    Operating width, m 5.6
    Driving speed, km/hr 5 - 10
    Performance, ha/hr 2.8 - 5.6
    Row spacing, mm 700
    Box capacity(total) for fertilizers, l (dm³) 800
    Number of rows, pcs. 8
    Tilling depth, mm 60 - 160
    Overall dimensions, mm 6 367 х 1 886 х 1 919
    Aggregated with tractors, max, hp 80
    Constructional weight, kg 880

* All data and figures are approximate and not binding. We reserve the right to make technical changes. Specify a complete set at the regional manager.
