ALTAIR 5.6-06

Сultivator ALTAIR 5.6-06 is designed for inter-row cultivation of row crops with simultaneous application of granular mineral fertilizers.
  • Description
  • Characteristics
  • ELVORTI ™ appliances are quality time-tested appliances. ELVORTI ™ products are manufactured from high strength steel according to European standards. As a result, buying ELVORTI ™, you get 50% more in terms of rigidity, strength and elasticity of the structure, which significantly increases the service life of the units.

    ALTAIR is a range of cultivators designed for inter-row cultivation of row crops with simultaneous application of granular mineral fertilizers. Provides high-quality loosening of the soil in the aisles to a given depth with the destruction of weeds.

    The presence of a transport device allows the cultivator to be transported by general-purpose roads with a width of 2.1 m.

    There is a variant of using the cultivator for continuous cultivation with razor paws, as well as for hilling. Steel holders of the tines of the shares withstand significant loads.

    The rotation from the support-drive wheels is transmitted to the shaft of the fertilizer dispenser. The seeding rate of fertilizers is set using gear mechanisms. The universal design of the wheel drive makes it easy to transfer the cultivator from the working position to the transport one.

    An unloading hatch is provided in the fertilizer hopper to remove the residues of mineral fertilizers.

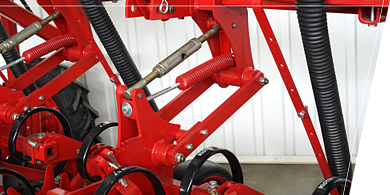

    PARALLELOGRAM SUSPENSION OF SECTIONS

    Rigid parallelogram suspension of the sections of the working bodies precludes damage to crops and ensures copying of the soil relief. All units are made of European steels and mounted on sealed rolling bearings, which increases the unit's service life.

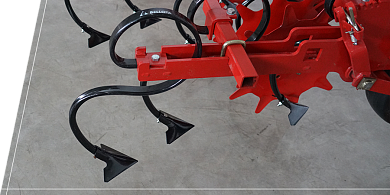

    RESOURCE SAVING S-STANDS

    Use of an S-shaped rack in the construction of the ALTAIR 5.6-06 cultivator reduces traction resistance, which ensures fuel economy and increases productivity. Steel holders of the tines of the shares withstand significant loads. On the cultivators of inter-row cultivation ALTAIR installed paws of our own production, for their manufacture special boron containing steel is used, which made it possible to increase the service life of the paws by 100%.

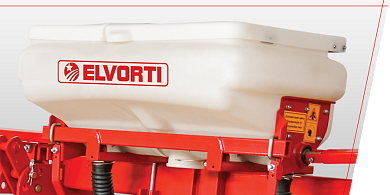

    FAT BUNKERS

    The cultivator ALTAIR 5.6-06 is equipped with fertilizer bunkers, with an increased capacity of 170 liters, with stainless steel shafts, which excludes corrosion. Fertilizer bunkers with a total capacity of 680 liters allow to cultivate up to 45 hectares in daylight hours (at a seeding rate of 100 kg / hectare of mineral fertilizers, 6.8 hectares can be sown with the 1st load of the cultivator).

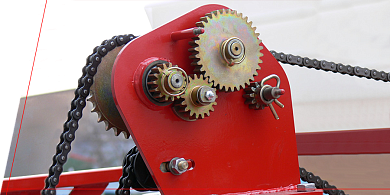

    GEAR MECHANISM

    The fertilizer application rate is set using modernized gear mechanisms with thickened steel gears.

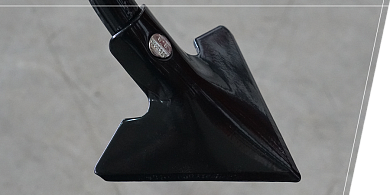

    WORKING BODIES OF OWN PRODUCTION

    Wear-resistant tines of our own production are installed on the ALTAIR inter-row cultivators, special boron steel is used for their manufacture, which made it possible to increase the service life of the tines by 100%. Steel holders of the tines of the shares withstand significant loads.

    Protective discs are designed to protect plants from sprinkling with soil, as well as to loosen the soil and destroy weeds in the protective zones when the unit is operating at high speeds.

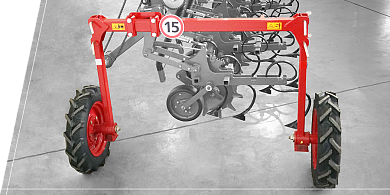

    TRANSPORTATION DEVICE

    Reliable transport device allows the cultivator to be transported on public roads with a width of 2.1 m Universal design of the wheel drive allows to transfer easily the cultivator from working position to transport position.

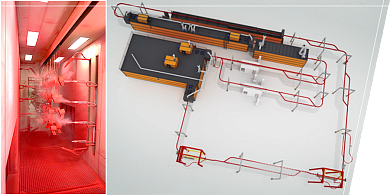

    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

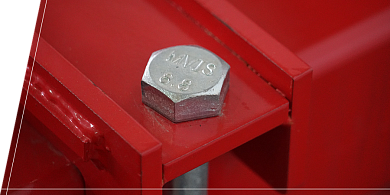

    HIGH-STRENGTH HARDWARE

    Usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

    FUEL CONSUMPTION

    Fuel consumption when working with a 80 hp tractor is 4.6 l/ha.

  • Aggregate type mounted
    Operating width, m 5.6
    Driving speed, km/hr 5 - 10
    Performance, ha/hr 2.8 - 5.6
    Row spacing, mm 700
    Box capacity(total) for fertilizers, l (dm³) 680
    Number of rows, pcs. 8
    Tilling depth, mm 60 - 160
    Overall dimensions, mm 6 500 х 2 100 х 1 700
    Aggregated with tractors, max, hp 90
    Constructional weight, kg 1 300

* All data and figures are approximate and not binding. We reserve the right to make technical changes. Specify a complete set at the regional manager.
