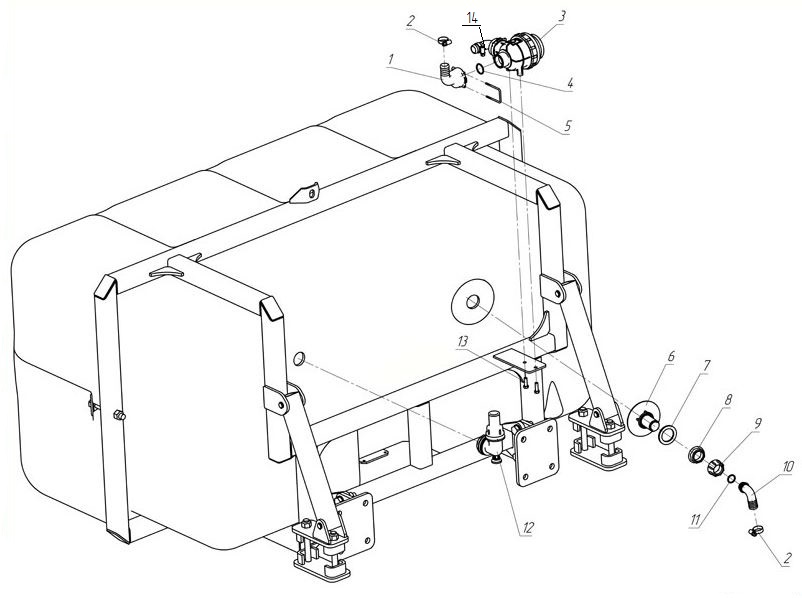

Приспособление для внесения жидких минеральных удобрений Вид А
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Assembly units and parts:
1 | Колено T5F D.25 (Bondioli кат. №1190525)
2 | Хомут 1Л 20-32-6 Н DIN 3017 (ГОСТ 28191-89)
3 | Фильтр Т5 32М (Bondioli кат. №31020D2)
4 | Кольцо 2,62х26,65 EPDM (Bondioli кат. №G10051)
5 | Фиксатор D.3 размер 42 (Bondioli кат. №010005)
6 | Антизавихритель 1"М (Bondioli кат. №504104)
7 | G40005 Плоская прокладка 40х57,5х4 EPDM
8 | 2052050 Контргайка 1" 1/4
9 | Кольцо 2,62х20,24 EPDM (Bondioli кат. №G10041)
10 | Сливной клапан 1" 1/4 (Bondioli кат. №452015)
11 | Болт М8-6gх25.88.019 DIN 933 (ДСТУ ГОСТ 7798:2008)
12 | Патрубок Т5М D.25 F (Bondioli 1090525)
