sprayers TETIS

The First Ukrainian trailed sprayer TETIS for accurate farming.

Thanks to its numerous equipment functions, TETIS sprayer meets high demands in areas of precision farming and modern crop protection. TETIS trailed sprayer with tank volume of 3,200 liters has a robust and easy-to-use design.

  • Description
  • Characteristics
  • TETIS SPRAYER ADVANTAGES

    ☑ CONTROL AT ALL STAGES

    Quality of spraying when working with TETIS is controlled using Italian company systems ARAG - from trim level Standard with simple control to trim level Premium Plus with remote control.

    ☑ SWITCHING SEPARATELY NOZZLES ON

    Automatic nozzles control SELETRON, with 50 cm distance between nozzles, ensures optimal sprayer operation

    ☑ BOOM - AS QUALITY INDICATOR

    Boom is made of light, high-strength Austrian-made steel for durability

    ☑ EQUAL PROCESSING OF PLANTS

    Using additional set of automatic control system with BLC position allows equal processing of plants

    ☑WORK IN DIFFICULT CONDITIONS

    For difficult terrain conditions, BLC automatic boom position control system is using ability to change boom geometry

    ☑ MEMBRANNE-PISTON PUMP

    Membrane-piston pump with a maximum capacity of up to 250 l/min, allowing you to work at speeds from 6 to 15 km/h, and increases the spraying performance up from 10.8 to 42 ha/h, what is 40% higher compared to competitors

    ☑ SMALL DIMENSIONS

    Low transport height and small dimensions due to unique tank design and boom construction

    ☑ PREMIXER

    High-performance 30 liter premixer provides fast fill and a homogeneous mix.

    3 LEVELS OF ACCURATE FARMING WITH TETIS SPRAYER

    To make it easier to understand differences between trim levels, we have introduced concept of accurate farming levels for our sprayer. First level is minimum set of functions that meets requirements of accurate farming. Second level is middle set of functions and third level is maximum functions set.

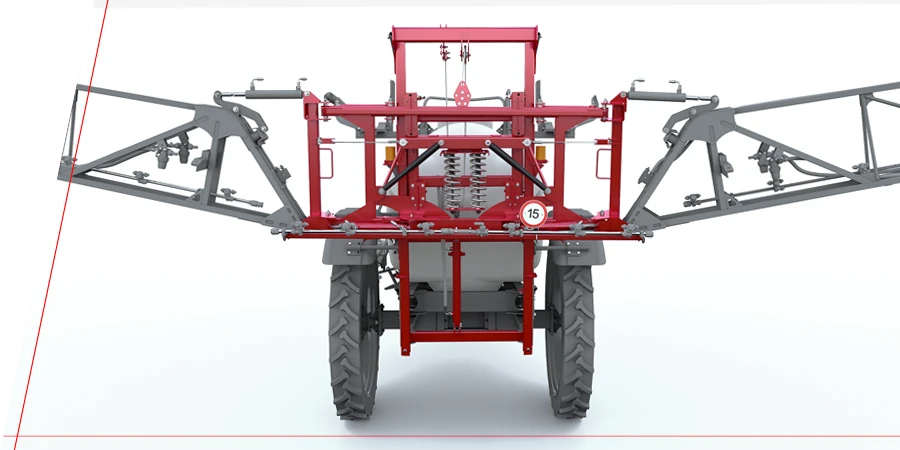

    BOOM SUSPENSION SYSTEM
    BOOM SUSPENSION SYSTEM:
    • • Balancer stabilization mechanism with hydro mechanical vibration damping system.
    • • The vibration damping system keeps the boom at a predetermined height parallel to ground, which ensures uniform processing of plants with minimal damage even at maximum speeds.
    • • wings rods of a volumetric structure with a length of 18 to 28 meters are made of light high-strength steel produced by Voestalpine Austrian concern(this steel is supplied to a number of car manufacturers, including BMW).
    • • Ability to smoothly change the height of the boom from 0.6 to 1.85 meters, even while driving.

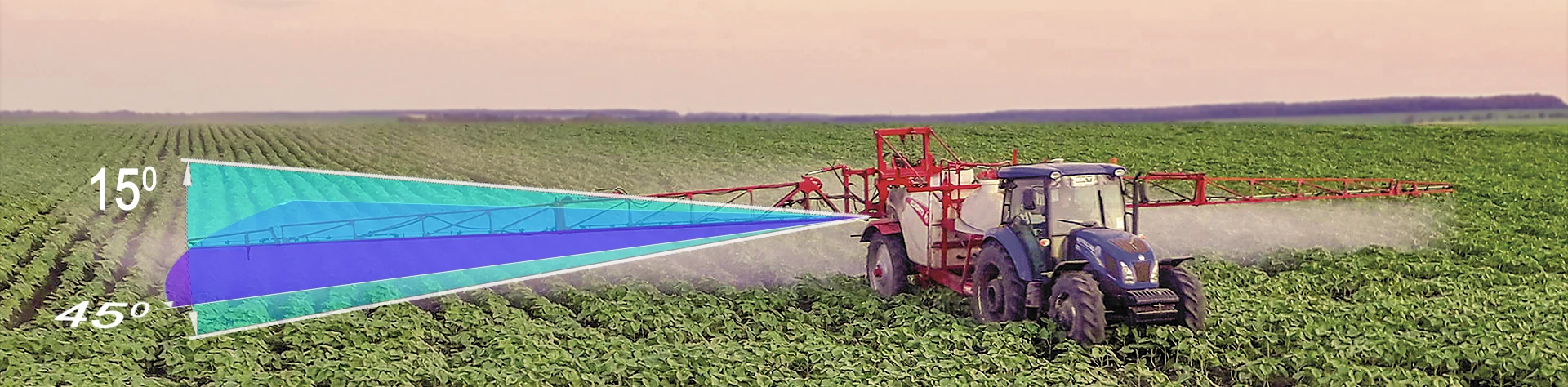

    • • boom protection mechanism in case of collision with an obstacle allows deflection of the boom up to 15˚ in the vertical plane and up to 45˚ - in the horizontal plane.
    • • After passing the obstacle, the bar returns to its original position.
    FOLDING

    The control of all hydraulic functions is simple and reliable via the terminal from the tractor cab. With the multifunctional unit, control of functions is particularly convenient.

    Following functions are possible

    Height adjustment, folding / unfolding, one-sided folding, reducing effective width of boom, slope adjustment (manual or automatic depending on the equipment).

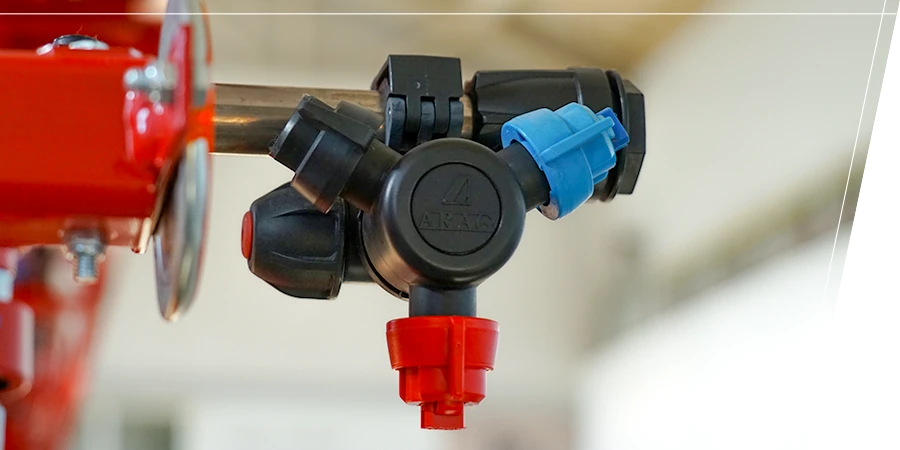

    SPRAYERS AND COMMUNICATIONS
    SPRAYERS AND COMMUNICATIONS

    Sprayers and communications on TETIS sprayer are installed by Italian company "Arag". The TETIS sprayer comes standard with 3-way nozzles that have constant coverage over a wide pressure range. Nozzle dispensers have a constant spray angle of 110˚, reducing drop drift when operating 1 - 1.5 bar pressure, which guarantees excellent coverage. Stamped nozzle body made of chemically resistant Delrin® material extends that product life. Blue nozzle - consumption up to 150 l/ha - fine dispersion. Red nozzle - consumption up to 300 l/ha - medium dispersion used for work in hot or windy weather.

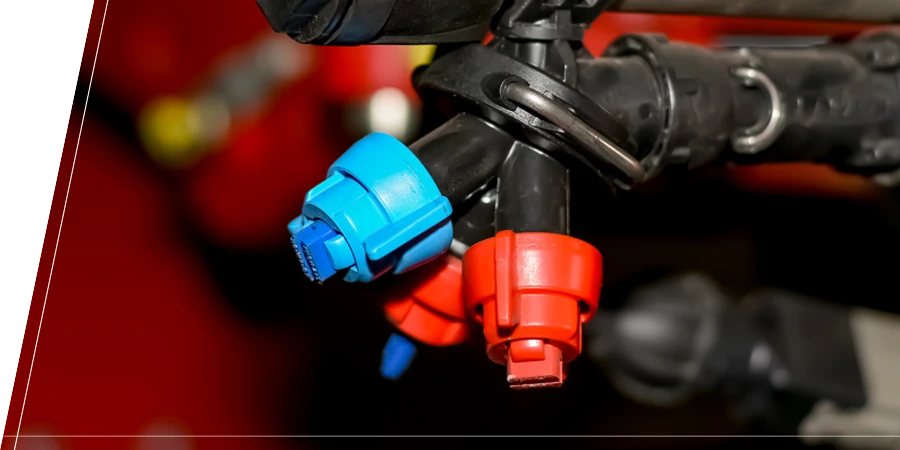

    DIFFERENTIATED APPLICATION OF RATES OF THE WORKING FLUID
    DIFFERENTIATED APPLICATION OF RATES OF THE WORKING FLUID

    It is possible to use a sprayer with one nozzle for differentiated application of working fluid rates with blue nozzles from 80 to 250 l/ha at a speed of 8 to 15 km/h, with red nozzles from 100 to 340 l/ha at a speed of 8 to 15 km/h

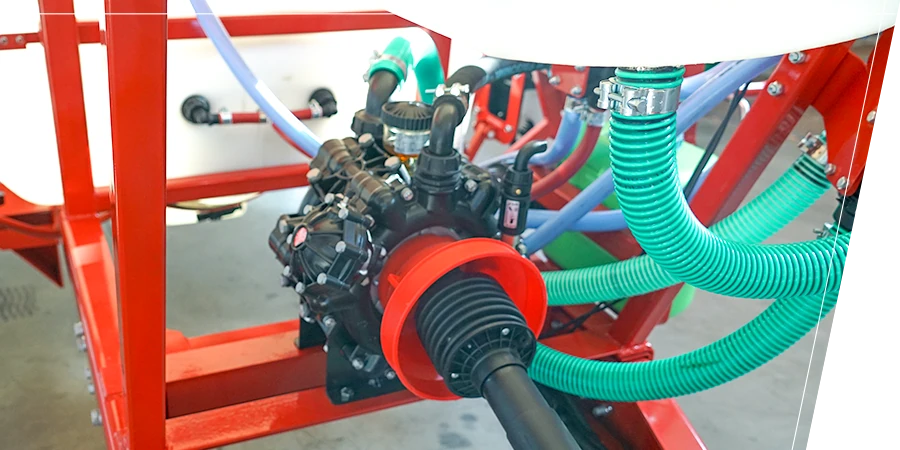

    MEMBRANE-PISTON PUMP
    MEMBRANE-PISTON PUMP

    Membrane-piston pump from Italian company Annovi Reverberi with maximum capacity of up to 250 l/min, allows you to work at speeds from 6 to 15 km per hour, and increases the spraying performance up from 10.8 to 42 ha/h, which is 40% higher compared to competitors.

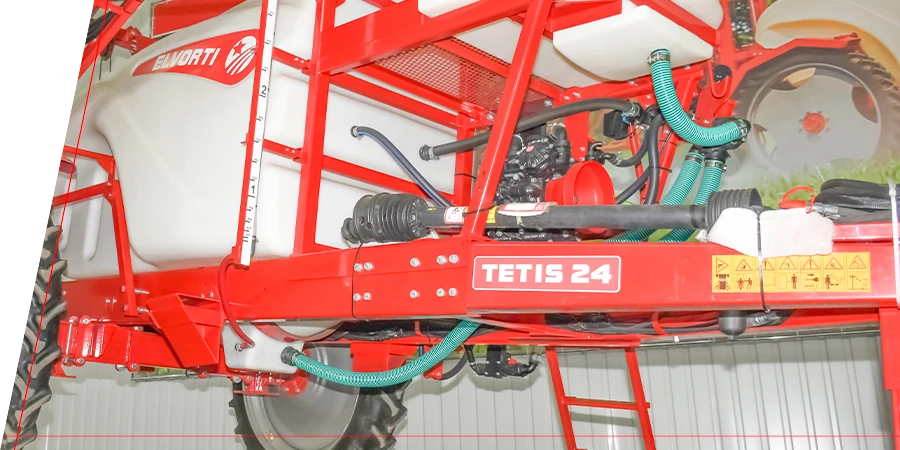

    SPRAYER TANK
    SPRAYER TANK

    Sprayer tank: made of high-strength and shape-stable plastic with volume of 3200 liters; Smooth inner surface minimizes deposition of used chemicals and facilitates quick and easy internal cleaning; shape of tank prevents the fluid from swinging and the sprayer toppling over; inside the tank, special hydraulic-type agitators are installed to maintain a constant concentration of working fluid and prevent foaming.

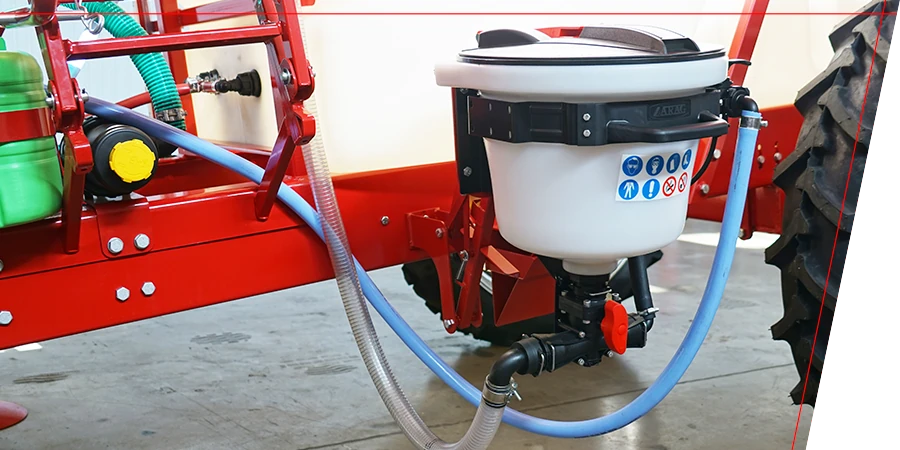

    PREMIXER
    PREMIXER

    Premixer for filling with working volume of 30 liters with gun for pumping liquid from a canister can be used to prepare a working solution or pour a concentrate into the main tank. Nozzle for flushing containers excludes contact with hazardous substances during operation, and also allows using their contents without waste.

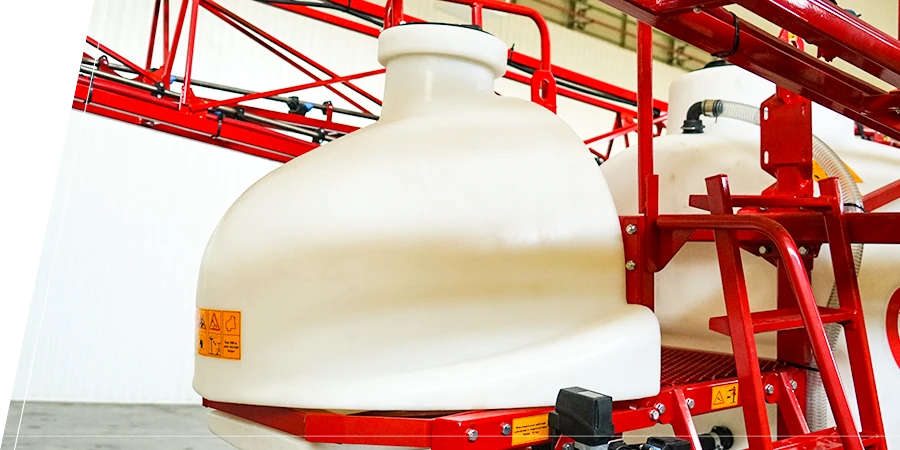

     TANK FOR FLUSHING
    TANK FOR FLUSHING

    Tank for flushing system with capacity of 200 liters, provides maximum cleaning of sprayer's system from the working fluid.

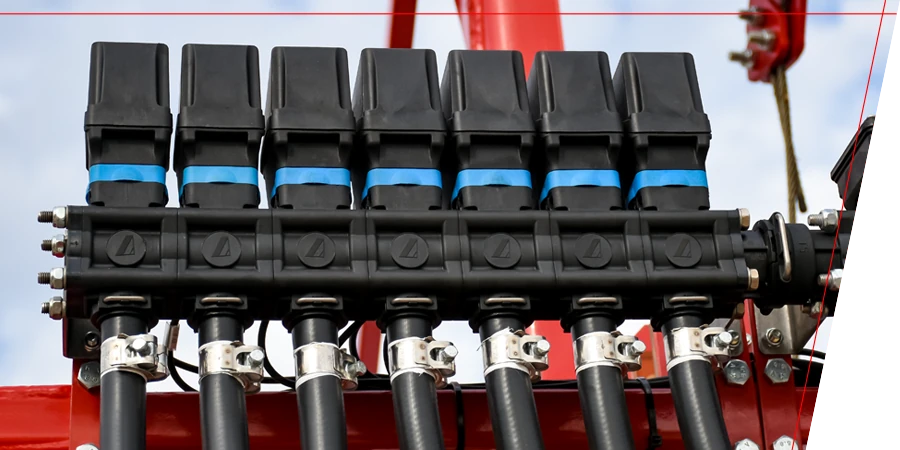

    DROPS LEAK PROTECTION
    DROPS LEAK PROTECTION

    Drops leak protection. If the pressure fals below 0.5 bar at the nozzle, the solution will stop flowing.

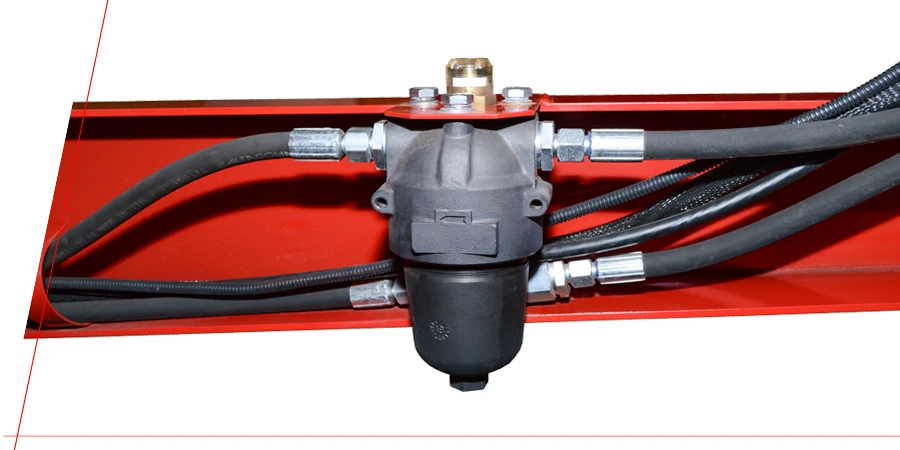

    HYDRAULIC SYSTEM (OIL)
    HYDRAULIC SYSTEM (OIL)
    • • 5-way distributor for ensuring the operation of 7 hydraulic cylinders. In this case, only one pair of outputs is used on the tractor;
    • • an oil filter is installed, which provides effective cleaning of the working fluid from possible abrasive contaminants and ensures the stable operation of the sprayer hydraulic systems.

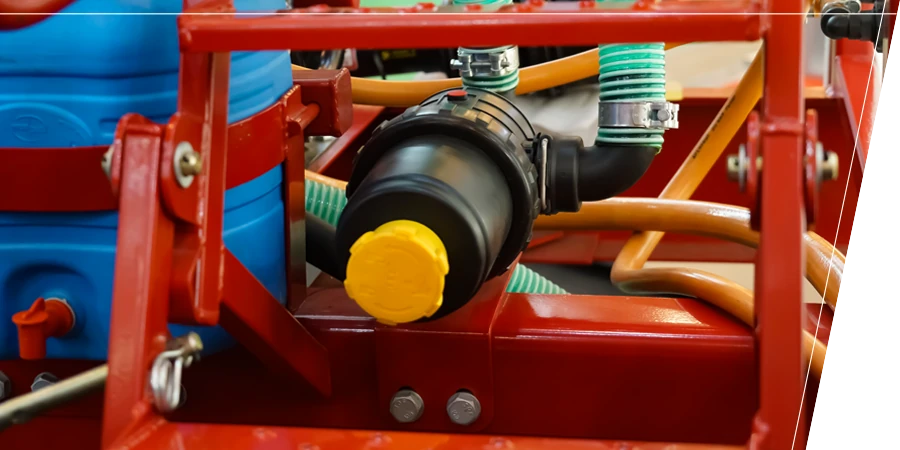

    HYDRAULIC SYSTEM (WATER)
    HYDRAULIC SYSTEM (WATER)

    There is a possibility of self-priming of water from natural reservoirs (in the presence of an extension hose). To protect the nozzles from contamination in the liquid system, filters are installed:
    • At the entrance to the barrel,
    • In front of the pump,
    • After the pump,
    • On each sections,
    • On each nozzle.

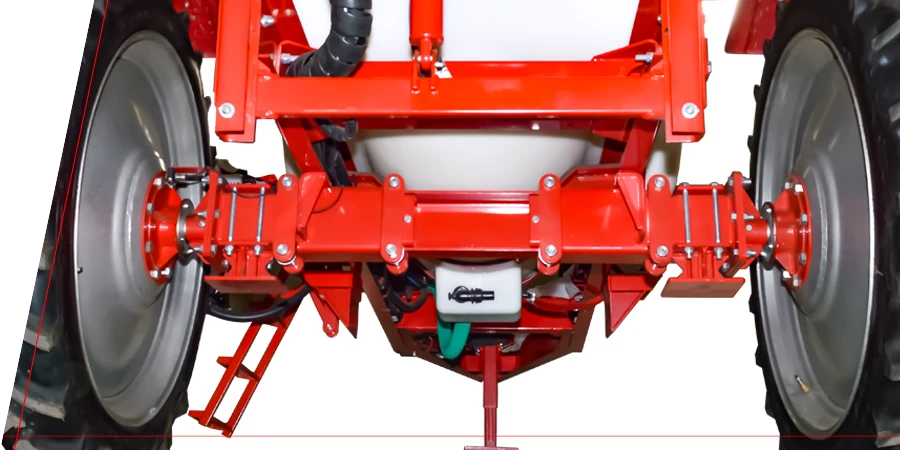

    TELESCOPIC SYSTEM
    TELESCOPIC SYSTEM

    The telescopic track width adjustment system from 1400 mm to 2250 mm allows the TETIS sprayer track to be adjusted in accordance with the tractor track and row spacing of row crops.

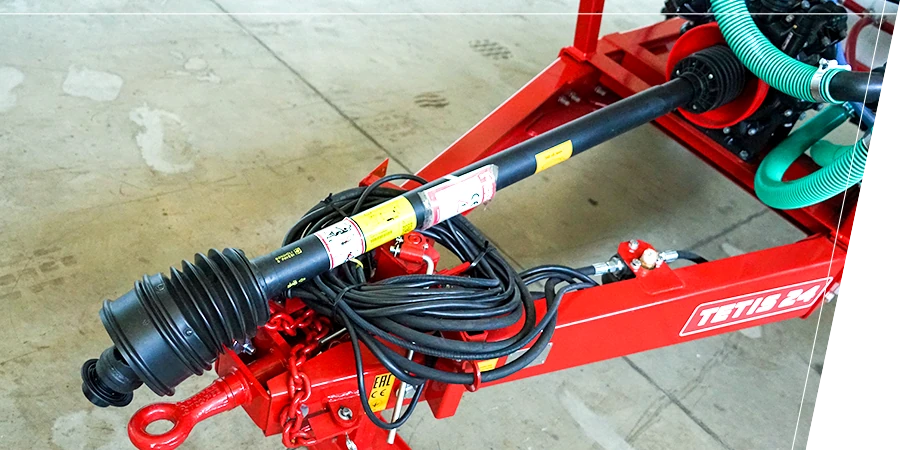

    WIDE DRIVE SHAFT
    WIDE DRIVE SHAFT

    The BONDIOLI & PAVESI wide-angle universal drive shaft allows turning without switching off the tractor PTO shaft, which in turn increases the reliability of the universal joint and saves time.

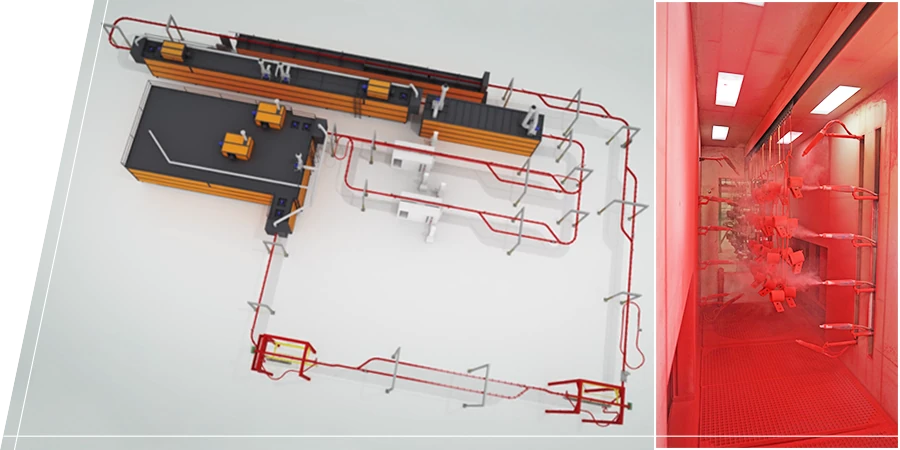

    POWDER COATING - Ideal-line (Denmark)
    POWDER COATING

    Production line was equipped with a powder coating line Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

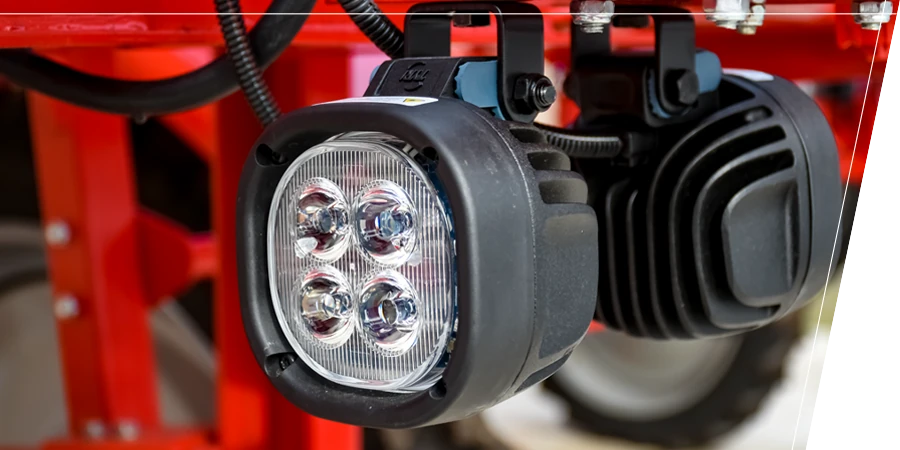

    LIGHTING - For work at night, the sprayer is equipped with spotlights.
    LIGHTING

    For work at night, the sprayer is equipped with spotlights.

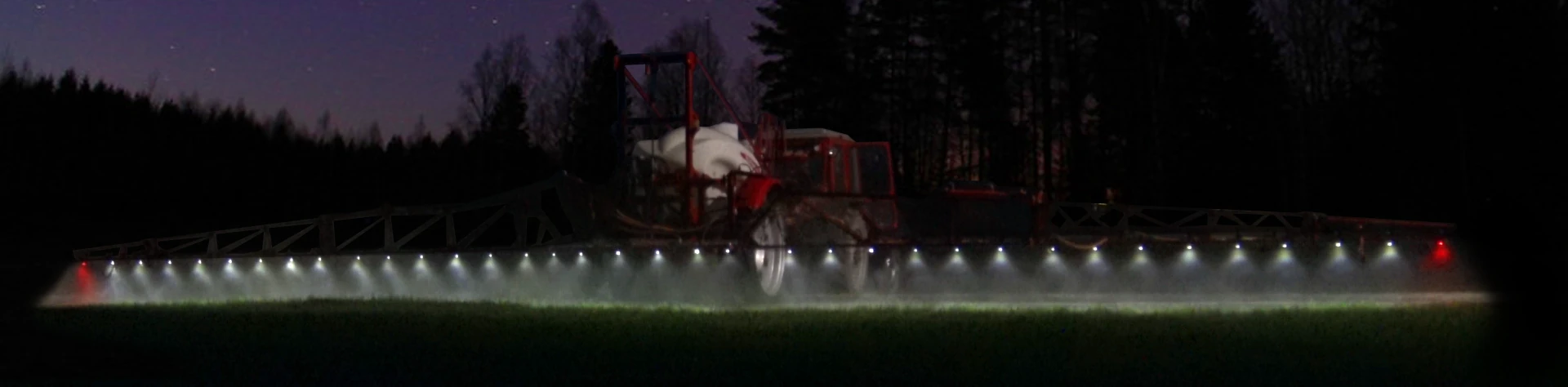

    LIGHTING - On request, it is possible to install by-nozzle illumination with diodes.
    LIGHTING

    On request, it is possible to install by-nozzle illumination with diodes.

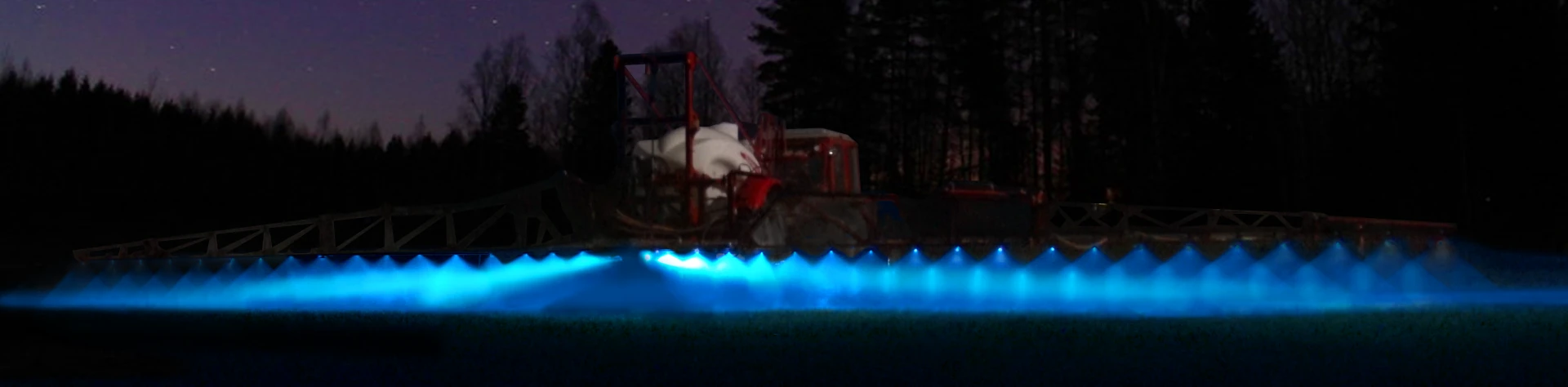

    LIGHTING - On request, it is possible to install by-nozzle illumination with diodes.

  • Aggregate model
    TETIS 18
    TETIS 21
    TETIS 24
    TETIS 28
    Aggregate type
    semi-trailed
    semi-trailed
    semi-trailed
    semi-trailed
    Operating width, m
    18
    21
    24
    28
    Driving speed, km/hr
    6 - 15
    6 - 15
    6 - 15
    6 - 15
    Performance, ha/hr
    10.8 - 27
    12.6 - 31
    14.4 - 36
    16.8 - 42
    Number of sprays, pcs.
    36
    36
    36
    36
    Rate of application of the working fluid, l/ha
    50 - 300
    50 - 300
    50 - 300
    50 - 300
    Wheel track width (adjustable), m
    1.4 - 2.4
    1.4 - 2.4
    1.4 - 2.4
    1.4 - 2.4
    Height of the boom (adjustable), m
    0.6 - 1.85
    0.6 - 1.85
    0.6 - 1.85
    0.6 - 1.85
    Pump speed, rpm
    540
    540
    540
    540
    Operating pressure created by the pump, at most, bar
    5
    5
    5
    5
    Capacity of the tank for chemicals, l
    3 200
    3 200
    3 200
    3 200
    Capacity of the tank for system fl ushing, l
    200
    200
    200
    200
    Capacity of the handwashing tank, l
    15
    15
    15
    15
    Mixer type
    ejector hydraulic mixer
    ejector hydraulic mixer
    ejector hydraulic mixer
    ejector hydraulic mixer
    Overall dimensions for transport, mm
    5 400 х 2 600 х 3 500
    5 800 х 2 600 х 3 500
    5 800 х 2 600 х 3 500
    6 000 х 2 600 х 3 900
    Overall dimensions in position, mm
    5 800 х 18 000 х 3 300
    5 800 х 21 000 х 3 300
    5 800 х 24 000 х 3 300
    5 900 х 28 000 х 3 300
    Aggregated with tractors, max, hp
    80
    80
    80
    80

* All data and figures are approximate and not binding. We reserve the right to make technical changes. Specify a complete set at the regional manager.
