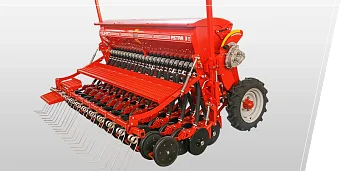

ASTRA 3

Mounted grain seeder for ordinary sowing of seeds according to traditional technology

for row sowing of cereals, legumes and other crops, the Astra 3 is the perfect choice for improved performance and characteristics. The design of this machine includes double disc single row coulters, which make the soil cultivation process even more efficient. A big advantage of this design is the possibility of simultaneous application of mineral fertilisers into the soil, which increases the yield of all crops. In the online shop you can buy mechanical grain seeder Astra 3 in Ukraine, which is set at the lowest possible price. All design solutions that allow you to reduce the total cost of crops in the process of cultivation are taken into account here.

ASTRA 3 image
ASTRA 3 video
ASTRA 3 video
  • Description
  • TECHNICAL DATA
  • ASTRA 3

    TECHNICAL DATA

    When developing each ASTRA model, we take into account all aspects of agriculture to ensure that our machines are an efficient means of achieving your goal. Due to the transport device of the PALLADA 3000 disc harrow, it is possible to mount the ASTRA 3 mounted seed drill behind the harrow for simultaneous sowing of grain crops.


    Small size
    Small size

    With a working width of 3 m and a row spacing of 120 mm, the grain seeder can be effectively used in small areas under conditions of intensive agricultural technologies.

    Weighing only 985 kg, the mounted seed drill makes the machine extremely manoeuvrable in the field and during transport.

    The drill is supplied with a tramline metering wheel changeover set to match the tractor wheel width.

    SYSTEM TRIM LINE
    SYSTEM TRIM LINE

    The drill is supplied with a TramLine metering wheel changeover set to match the tractor wheel width

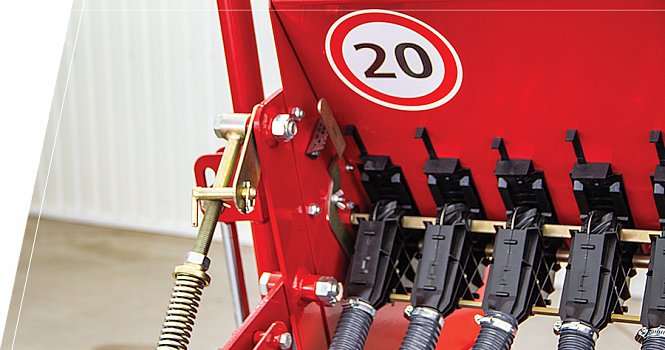

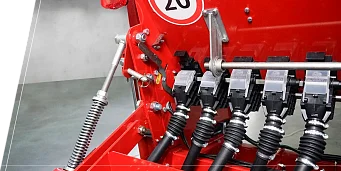

    SEEDING UNIT FROM POLYMER MATERIALS
    SEEDING UNIT FROM POLYMER MATERIALS

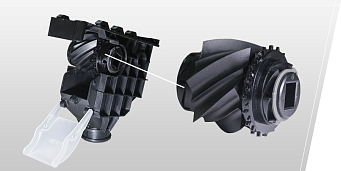

    The sowing device is equipped with two types of coils:
    • screw reel for sowing cereals and leguminous crops;
    • pin reel for sowing small seeds and grass seeds.
    This solution allows a constant and precise seed rate of 1.5 to 400 kg/ha and is suitable for all seed types, sizes and shapes.

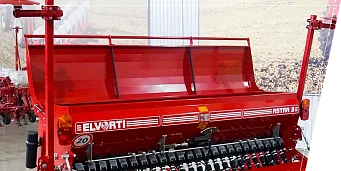

    SIDE WALLS
    SIDE WALLS

    • Seed drill protection against soil blockage.
    • Increase overall structural rigidity.

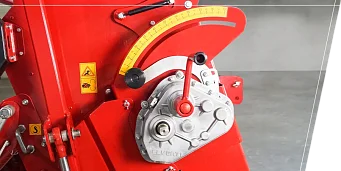

    INFINITELY VIRIABLE SYSTEM GEAR BOX (VARIATOR)
    INFINITELY VIRIABLE SYSTEM GEAR BOX (VARIATOR)

    Infinitely variable transmission mechanism (variator), which provides easy and quick adjustment of seeds and fertilizers seeding rates; provides more accurate and smooth adjustment in an increased seeding rate range (from 1.5 to 400 kg / ha) compared to a gearbox.

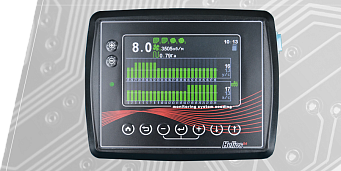

    ELECTRONIC CONTROL SYSTEM
    ELECTRONIC CONTROL SYSTEM

    Electronic control system as a standard. ASTRA 3 is equipped with a new version of electronic seed control systems, which uses a new design seed flow control sensors with increased reliability and accuracy of determining of the seed flows density.

    DRIVING SYSTEM
    DRIVING SYSTEM

    The driving system with a press roller and an improved coulter pressure mechanism of up to 35 kg with a spring of increased rigidity and hydraulic compression allows for uniform deepening of the coulters in the soil, creating a high-quality seed bed for seeds, which is an undoubted competitive advantage of the ASTRA 3 seeder.

    Coulters have an adjustable elastic stroke, which allows each coulter to individually overcome obstacles and follow the terrain releif.

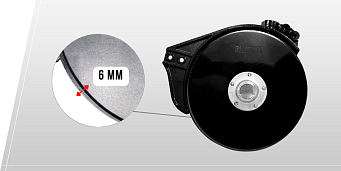

    DUAL DISC OPENER EXPLOIT LIFE INCREASED BY 100%
    DUAL DISC OPENER EXPLOIT LIFE INCREASED BY 100%

    Increased service life of the double-disc opener up to 100%, due to the use of boron-containing, increased hardness steels. The double-disc single-row opener allows sowing at the fields with a large amount of crop residues; the uniformity design of the coulter-press roller unit allows the coulter to be adjusted to a predetermined depth. ASTRA 3 has excellent planting depth control. The result is totally germination, which contributes to increased yields throughout the field.

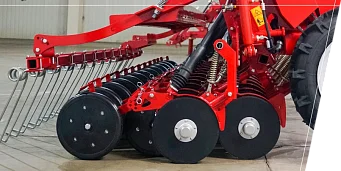

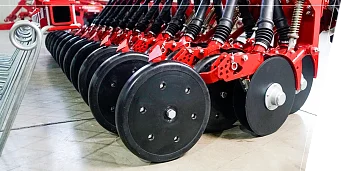

    PRESS WHEELS
    PRESS WHEELS

    The press wheels allow sowing in different soil moisture conditions. New reliable depth adjustment system ensures a stable, uniform seed placement depth. DUROSTAT 400 wear-resistant steel wipers are installed to clean the press wheels and ensure a stable seeding depth, which increases the wipers' service life.

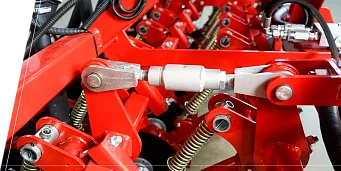

    SEED DEPTH ADJUSTMENT DESIGN
    SEED DEPTH ADJUSTMENT DESIGN

    The front and rear shafts of the coulter linkage are connected by a lanyard, which enables group adjustment of the coulter stroke depth.

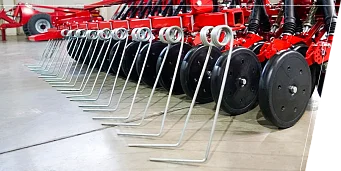

    HYDRAULICS HARROWS
    HYDRAULICS HARROWS

    The harrow, as standard, covers moisture and levelling of the field surface. The harrows have adjustable angle of attack and soil pressure, which extends their range of use in different climatic conditions.

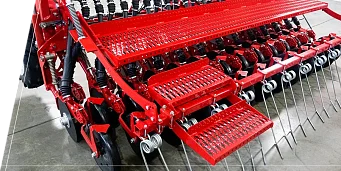

    SAFE FOOTRESTS
    SAFE FOOTRESTS

    The safety-enhancing steel non-slip footrests are located across the entire width of the drill and provide easy access to the seed hopper for loading.

    BUNKER
    BUNKER

    The ASTRA 3 has a total grain hopper capacity of 500 litres, which makes it possible to sow 3 hectares of wheat at a sowing rate of 200 kg/ha with one load.

    The tedder installed in the hopper ensures a uniform grain flow to the sowing unit without blockages and slackening.

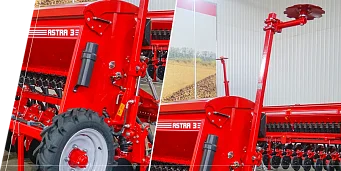

    MARKER
    MARKER

    The markers lowered and raised by a hydraulic mechanism that consists of a hydraulic cylinder and a high-pressure hose, and controlled from the tractor cab. The marker itself folded in half to reduce the height of the seeder.

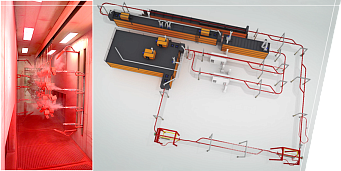

    POWDER COATING
    POWDER COATING

    The production line was equipped with a powder coating line -Ideal-line (Denmark). This painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

  • Aggregate type mounted
    Operating width, m 3
    Working speed, km/hr 8 - 10
    Number of rows, pcs. 25
    Capacity, ha/hour 2.4 - 3.0
    Seeding depth of disc openers, mm 40 - 80
    Opener pressure, kg/sm² 35
    Seeding rate for grains, kg/ha 1.5 - 400
    Row spacing, mm 120
    Total seed hopper capacity, l (dm³) 500
    Overall dimensions for transport, mm 2 220 х 3 000 х 2 150
    Overall dimensions in position, mm 2 220 х 3 000 х 1 450
    Coupled with tractors with power, more than h.p. 70
    Weight, kg 985

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
