ALFA 6 NO-TILL

Choose reliability, saving of costs and resources



ALFA 6 NO-TILL image
ALFA 6 NO-TILL image
ALFA 6 NO-TILL image
ALFA 6 NO-TILL image
ALFA 6 NO-TILL image
ALFA 6 NO-TILL video
ALFA 6 NO-TILL video
  • Description
  • TECHNICAL DATA
  • ALFA 6 NO-TILL

    TECHNICAL DATA

    ADVANTAGES AT A GLANCE ALFA 6 No-Till

    ☑ BIGGEST bunker - high productivity

    Seeder ALFA 6 No-Till equipped with a bunker with a large capacity of 3 000 l, which, at a sowing speed of 12 km/h, provides a productivity of 7.2 га/час.

    ☑ Start off the seeding campaign earlier

    Unique design of the disposition drive of a larger diameter wide wheels, allows seeding in a conditions of high soil moisture, which makes it possible to start the seeding campaign earlier.

    ☑ Up to 25% fuel economy compared to competitors

    The lightweight design of the seeder ALFA 6 No-Till is made of heavy-duty steels with an ORIGINAL disposition of supporting wheels, which saves fuel during working with tractors of lower power compared to competitors.

    ☑ New sowing machine

    Made of polymeric materials resistant to aggressive environment and corrosion. It has a double spool: screw spool for sowing cereals and leguminous crops and pin spool for sowing small crops and grass seeds of all shapes and sizes. The sowing spool feeds the seeds smoothly and evenly without traumatising them, which increases the accuracy of seed distribution in the row.

    ☑ Quick job by the FastTrai transport device

    Trailer transport device FastTrai - allows you to transfer the seeder in 2 minutes from the transport position to the working position and vice versa, which saves time and facilitates the work of the machines operator.

    ☑ No-Till farming technology

    CoultSystem driving system in combination with coulters allows you to evenly spread the seeds on the bottom of the furrow, during direct sowing, when the soil is cultivated only in the sowing rows. Coulter springs provide a load of up to 205 kg for efficient operation in the toughest stubble conditions.


    TRANSPORTATION DEVICE FASTTRAI

    A new hitch and transportations device FastTrai, that allows you to transfer the seeder from transport to working position and vice versa, in 2 minutes.The transportations device in the basic configuration with wheels of increased diameter and strength provides additional protection against damage to tires by stems of plants and other objects on the surface of the field, with a transport width of 2.45 m, it allows you to move the seeder at public roads.

    Coulter press mechanism
    Coulter press mechanism

    CoultSystem driving system in combination with coulters allows you to evenly spread the seeds on the bottom of the furrow, during direct sowing, when the soil is cultivated only in the sowing rows. Coulter springs provide a load of up to 205 kg for efficient operation in the toughest stubble conditions.


    New sowing machine made of polymeric materials
    New sowing machine made of polymeric materials

    Sowing machine is equipped with two types of coils:

    • screw type for sowing cereals and legumes;

    • pin type for sowing small-seeded crops and grass seeds.

    Solution ensures a constant and accurate seeding rate from 1.5 to 400 kg/ha and is suitable for seeds of all types, sizes and shapes. Sowing machines are driven by an electric motor and guarantee continuous and uniform sowing, regardless of the speed of the vehicle.

    STAINLESS STEEL SHAFTS OF FERTILISERS DRIVE UNIT
    STAINLESS STEEL SHAFTS OF FERTILISERS DRIVE UNIT

    The drive unit shafts of the fertilizer dispensers are made from stainless steel, which increases the durability of the shafts and the fertilizer dispensers, located on them and excludes their corrosion.

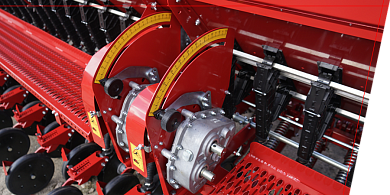

    INFINITELY VIRIABLE SYSTEM GEAR BOX (VARIATOR)
    INFINITELY VIRIABLE SYSTEM GEAR BOX (VARIATOR)

    Infinitely variable transmission mechanism (variator), which provides easy and quick adjustment of seeds and fertilizers seeding rates ; provides more accurate and smooth adjustment in an increased seeding rate range (from 1.5 to 400 kg / ha) compared to a gearbox.

    ELECTRONIC CONTROL SYSTEM
    ELECTRONIC CONTROL SYSTEM

    Electronic control system as a standard. ALFA 6 No-Till is equipped with a new version of electronic seed control systems, which uses a new design seed flow control sensors with increased reliability and accuracy of determining of the seed flows density.

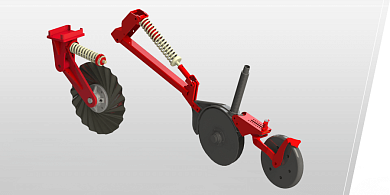

    COULTSYSTEM driving system
    COULTSYSTEM driving system

    New design of the CoultSystem leash system with a packer roller and an improved coulter pressure mechanism up to 130 kg allows for a uniform coulter depth in the soil and creates a quality seedbed. This is an undoubted competitive advantage of the ALFA 6 No- Till seed drill.

    Coulters have an adjustable spring-loaded stroke of up to 320 mm, which allows each coulter to individually overcome obstacles and follow the terrain.

    DUAL DISC OPENER EXPLOIT LIFE INCREASED BY 100%
    DUAL DISC OPENER EXPLOIT LIFE INCREASED BY 100%

    Increased service life of the double-disc opener up to 100%, due to the use of boron-containing, increased hardness steels. The double-disc single-row opener allows sowing at the fields with a large amount of crop residues; the uniformity design of the coulter-press roller unit allows the coulter to be adjusted to a predetermined depth. ALFA 4 has excellent planting depth control. The result is totally germination, which contributes to increased yields throughout the field.

    2 sets of press wheels available in a choice of
    2 sets of press wheels available in a choice of "narrow" or "wide" types

    Optional "narrow" or "wide" press wheels allow sowing in different soil moisture conditions. New reliable depth adjustment system ensures a stable, uniform seed placement depth. DUROSTAT 400 wear-resistant steel wipers are installed to clean the press wheels and ensure a stable seeding depth, which increases the wipers' service life.

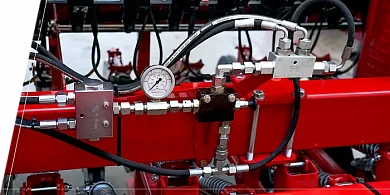

    CONSTANT PRESSURE HYDRAULICS
    CONSTANT PRESSURE HYDRAULICS

    Constant hydraulic pressure, due to the installed shut-off valve, which allows you to fix the initially set coulter pressure. This function guarantees a consistently high quality of seed placement in the soil, allows you to maintain the uniformity depth of the coulters on uneven surfaces and under changing soil conditions.

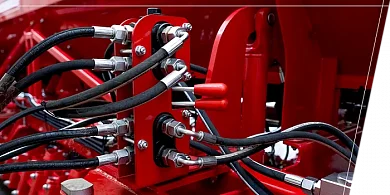

    CONTROL VALVES (VALVE)
    CONTROL VALVES (VALVE)

    Control valves (valve) allows the marker control to be operated with one handle from the tractor cab.

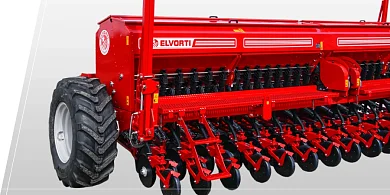

    Reinforced discs
    Reinforced discs

    The ALFA 6 No-Till seeders are equipped with wide wheels with an increased contact with the soil and discs of reinforced profile, which allows you to reduce the pressure on the soil, and work with the seeder in the spring on a wetter and looser ground, as well as on the ALFA 6 No-Till seeders, a hub with an increased axle diameter and a bearing were used with higher lifting capacity, which increases durability and reliability when sowing in No-Till.

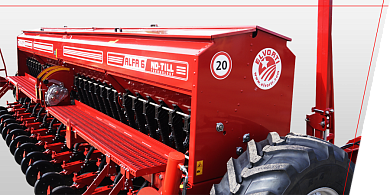

    Biggest bunker
    Biggest bunker

    Biggest bunker – 3 000 l (grain - 1 800 l, fertilizer – 1 200 l), which allows sowing up to 70 hectares in daylight (with a seeding rate of 200 kg / ha of wheat and 100 kg / ha of mineral fertilizers), 9 hectares can be sown at the 1st load of the seeder.

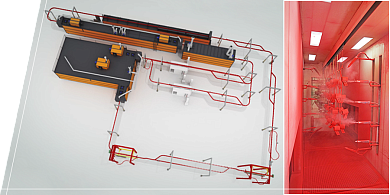

    POWDER COATING
    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). Painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

  • Type of machine
    ALFA 4 NO-TILL
    ALFA 6 NO-TILL
    Aggregate type
    semi-trailed
    semi-trailed
    Operating width, m
    4
    6
    Working speed, km/hr
    9 - 12
    9 - 12
    Number of rows, pcs.
    20
    30
    Capacity, ha/hour
    3.5 - 4.8
    5.4 - 7.2
    Seeding depth of disc openers, mm
    20 - 80
    20 - 80
    Opener pressure, kg/sm²
    from 130
    from 130
    Seeding rate for grains, kg/ha
    1.5 - 400
    1.5 - 400
    Row spacing, mm
    200
    200
    Seeding rate for fertilizers, kg/ha
    25 - 200
    25 - 200
    Box capacity(total) for grains, l (dm³)
    1 200
    1 200
    Box capacity(total) for fertilizers, l (dm³)
    800
    800
    Overall dimensions for transport, mm
    6 430 х 2 950 х 3 340
    8 510 х 2 950 х 4 200
    Overall dimensions in position, mm
    5 050 х 5 260 х 2 000
    5 120 x 7 360 x 2 000
    Weight, kg
    4 380
    6 100

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
