PALLADA 3200-01

Effective treatment of all types of soils
PALLADA 3200-01 360 grad view
PALLADA 3200-01 image
  • Description
  • TECHNICAL DATA
  • PALLADA 3200-01

    TECHNICAL DATA

    ADVANTAGES AT A GLANCE DOUBLE-ROW DISC HARROWS PALLADA

    ☑ Versatility by changing the angle of attack

    The PALLADA design with separate angle of attack adjustment of each disc row from 0° to 30° allows quick and easy adjustment for changes in moisture, crop residue and soil type.

    ☑ Rigid disc stand

    On PALLADA harrows, each disc is mounted on a high-strength firm disc stand, which guarantees uniform soil tillage with minimal ridges in the seeding area.

    ☑ Individual disc stand

    This sturdy disc stand, made of a strong steel wheel with a 7° bend angle, allows working in fields with large amounts of crop residues without clogging.

    ☑ Original disc design

    The 9-cutout disc with its unique "lobes" design ensures optimal cutting and mixing of crop residues compared to similar machines.

    ☑ Disc sharpening angle 20°

    The 20° disc sharpening angle ensures reliable deepening and cutting of crop residues as well as uniform wear of the disc over the entire cutting edge while maintaining its sharpening throughout its entire service life.

    ☑ Mini-till farming technology

    The disc harrow is designed for efficient cultivation using Mini-till farming technology and soil preparation for sowing grain, industrial and forage crops.

    ☑ Trailed disk harrows

    The trailed harrows do not require high tractor pulling power, which reduces fuel consumption and the cost of cultivation per 1 ha.

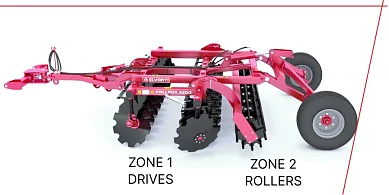

    THREE OPERATIONS IN ONE PASS
    THREE OPERATIONS IN ONE PASS

    Zone 1 - DISKS:
    - destruction of weeds, shredding of crop residues after harvesting crops, loosening of the surface soil layer to pre-sowing condition,

    Zone 2 - ROLLERS:
    - field leveling and soil compaction with rollers.

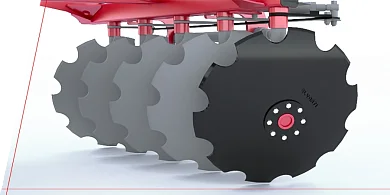

    660 mm diameter discs
    660 mm diameter discs

    The 660 mm diameter discs are designed for greater tillage depth. The disc harrows are equipped with inclined spherical discs with a diameter of 660 mm on individual stands, which increases throughput and cultivation depth and is advantageous with large amounts of crop residues, e.g. after maize harvesting.

    DISCS ARE MADE OF EUROPEAN STEELS WITH BORON CONTENT
    DISCS ARE MADE OF EUROPEAN STEELS WITH BORON CONTENT

    Disks are made of European steels with boron content of increased rigidity, which increases their service life up to 100%. The unique method of disk sharpening provides uniform wear of the disk over the entire cutting surface with preservation of its sharpening during the whole service life. To prevent counterfeiting, the manufacturer's branding is placed. Optimum number of notches on the disk for excellent ground crumbling and cutting of post-harvest residues.

    MAINTENANCE-FREE HUB
    MAINTENANCE-FREE HUB

    The hub with rigid post adapter is a high performance hub designed by for the Pallada and Antares disc harrows.

    The design, based on a double row angular contact ball bearing and cassette seal integrated into the housing, gives the product a longer service life than standard hubs;

    Lubrication and seals are designed for the life of the bearing.

    SERVICED HUB
    SERVICED HUB

    Design of hub of cutting unit, due to installation of a collar with a cassette seal, increases life of bearing by 60% and reduces time for maintenance by up to 50%.

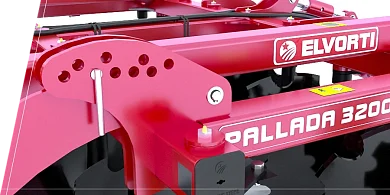

    ADJUSTING THE TILLAGE DEPTH
    ADJUSTING THE TILLAGE DEPTH

    New design for adjusting tillage depth by moving pin between holes. Design made it easier to adjust depth of soil cultivation, while increasing durability of the unit.

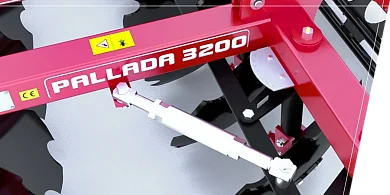

    ADJUSTABLE ENTRY ANGLE=UNIVERSALITY
    ADJUSTABLE ENTRY ANGLE=UNIVERSALITY

    The disc harrow design provides independent row adjustment of the disc entry angles from 00 to 300, which allows you to optimize soil cultivation in accordance with different working depths. Thus, this contributes to the improvement of the agrotechnical parameters of soil cultivation, as well as to a decrease in the required tractive effort of the tractor. Bushings are installed on the bar for changing the entry angle of the discs, which makes it easier to adjust the entry angle. A small entry angle provides a shallow surface harrowing, while an increasing of entry angle provides good penetration.

    HEAVY DUTY FRAME - LONG LIFE SERVICE
    HEAVY DUTY FRAME - LONG LIFE SERVICE

    Double-row disc harrows of the PALLADA series are equipped with an incredibly strong frame, which ensures a long-life service, even, in difficult conditions.

    Frame was prodused by using high-strength pipes from European steel, which provides reducution of the weight of the frame structure, while increasing its strength and rigidity, as a results, tractors fuel consumption was decreased.

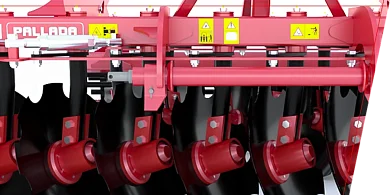

    RACK
    RACK

    Each harrow disc of the PALLADA is mounted on an individual rack. The absence of a single axis precludes winding of crop residues and clogging of the interdisc space.

    OILER ON EACH HUB
    OILER ON EACH HUB

    Oiler nipples on each hub ensure durability of unit, and oiler nipples at rack attachment essembly, preclude clogging with dust and breakdown of the racks and ensure easy setup of unit.

    POWDER COATING
    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). Painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

    HIGH-STRENGTH HARDWARE
    HIGH-STRENGTH HARDWARE

    The usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

  • Aggregate type trailed
    Operating width, m 3.2
    Working speed, km/hr 12
    Capacity, ha/hour 3.8
    Tilling depth, mm 150±30
    Angle of attack of disks, deg. 0 - 30
    Distance between disk rows, mm 950
    Diameter of working bodies, mm 660
    Distance between disk blades, mm 320
    Transport speed, km/h 20
    Number of cutting components, pcs. 20
    Overall dimensions, mm 4 650 х 3 350 х 1 930
    Coupled with tractors with power, more than h.p. 90
    Weight, kg 1 700

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
