Disc harrow ANTARES 4X4 Designed for resource-saving pre-sowing soil cultivation for sowing grain, industrial and forage crops, weed control and chopping of crop residues after harvesting, as well as chopping, leveling and compaction of the soil.

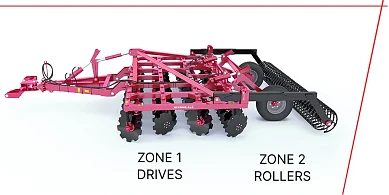

Zone 1 - DISKS:
- destruction of weeds, shredding of crop residues after harvesting crops, loosening of the surface soil layer to pre-sowing condition,
Zone 2 - ROLLERS:
- mixing plant residues with soil;
- leveling and compaction of the soil;
- "combing out" weed residues.
The ANTARES series double row disc harrows are equipped with inclined spherical discs with a diameter of 560 mm on an individual stand and are designed for seedbed preparation without pre-plowing and for post-harvest cultivation.
Disks are made of European steels with boron content of increased rigidity, which increases their service life up to 100%. The unique method of disk sharpening provides uniform wear of the disk over the entire cutting surface with preservation of its sharpening during the whole service life. To prevent counterfeiting, the manufacturer's branding is placed. Optimum number of notches on the disk for excellent ground crumbling and cutting of post-harvest residues.
The hub with rigid post adapter is a high performance hub designed by for the Pallada and Antares disc harrows.
The design, based on a double row angular contact ball bearing and cassette seal integrated into the housing, gives the product a longer service life than standard hubs;
Lubrication and seals are designed for the life of the bearing.
Design of hub of cutting unit, due to installation of a collar with a cassette seal, increases life of bearing by 60% and reduces time for maintenance by up to 50%.
New design for adjusting tillage depth by moving pin between holes. Design made it easier to adjust depth of soil cultivation, while increasing durability of the unit.
The disc harrow design provides independent row adjustment of the disc entry angles from 00 to 300, which allows you to optimize soil cultivation in accordance with different working depths. Thus, this contributes to the improvement of the agrotechnical parameters of soil cultivation, as well as to a decrease in the required tractive effort of the tractor. Bushings are installed on the bar for changing the entry angle of the discs, which makes it easier to adjust the entry angle. A small entry angle provides a shallow surface harrowing, while an increasing of entry angle provides good penetration.
Each harrow disc of ANTARES is mounted on an individual rack. Absence of a single axis precludes winding of crop residues and clogging of the interdisc space.
Four-row disc harrows of ANTARES series are equipped with an incredibly strong frame, which ensures a long-life service, even, in difficult conditions.
Frame was prodused by using high-strength pipes from European steel, which provides reducution of the weight of the frame structure, while increasing its strength and rigidity, as a results, tractors fuel consumption was decreased.
Oiler nipples on each hub ensure durability of unit, and oiler nipples at rack attachment essembly, preclude clogging with dust and breakdown of the racks and ensure easy setup of unit.
Spiral rollers are part of the basic equipment of the ANTARES range of harrows and they ensure:
- mixing of crop residues with soil;
- leveling and compaction of the soil;
- "combing out" of weed residues.
Usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.
Production line was equipped with a powder coating line -Ideal-line (Denmark). Painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.
|Operating width, m
|Working speed, km/hr
|Tilling depth, mm
|Angle of attack of disks, deg.
|0 - 30
|Distance between disk rows, mm
|Diameter of working bodies, mm
|Distance between disk blades, mm
|Transport speed, km/h
|Number of cutting components, pcs.
|Overall dimensions, mm
|5 950 х 4 340 х 1 440
|Coupled with tractors with power, more than h.p.
* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
