PALLADA 6000

Double-row disc harrows of the PALLADA 6000 series are multifunctional implements with a working width of 6 m. Equipped with 560 mm discs. The size of the discs allows for good grinding of crop residues with a large working width. In this case, the angle of attack of the disc can be adjusted to the working depth. In large fields, impressive productivity of up to 7.2 hectares per hour is especially visible. This keeps the total cost per hectare to a minimum.
PALLADA 6000
PALLADA 6000 image
PALLADA 6000 video
PALLADA 6000 video
  • Description
  • TECHNICAL DATA
  • PALLADA 6000

    TECHNICAL DATA

    Double-row disc harrows of the PALLADA series are used in all agro-climatic zones, as well as in fields with a large amount of crop residues. Designed for effective resource-saving, surface, pre-sowing soil cultivation using Mini Till farming technology, for sowing grain, industrial and forage crops.


                                                    THREE OPERATIONS IN ONE PASS


 Zone 1 - driv

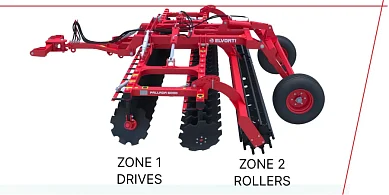

    THREE OPERATIONS IN ONE PASS

    Zone 1 - drives:
    - destruction of weeds, crushing of crop residues after harvesting sowing crops, loosening of the surface layer of soil to a pre-sowing state,

    Zone 2 - skating rinks:
    - leveling the relief of the field and compaction of the soil with rollers.


DISCS WITH A DIAMETER OF 560 MM


Discs with a di

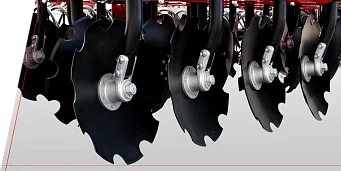

    DISCS WITH A DIAMETER OF 560 MM

    Discs with a diameter of 560 mm are intended for pre-sowing soil cultivation. Double-row disc harrows of the PALLADA series are equipped with swivel-spherical discs on individual tines with a diameter of 560 mm, for pre-sowing soil preparation without preliminary plowing and tillage after harvesting.

                                         WHEELS MADE FROM BORO-CONTAINING EUROPEAN STEELS

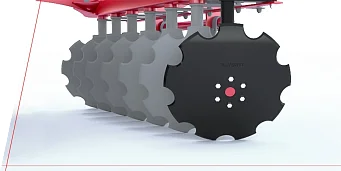

    WHEELS MADE FROM BORO-CONTAINING EUROPEAN STEELS

    Discs are made of boron-containing European steels of increased hardness, due to which the service life is increased up to 100%. The unique disc sharpening method ensures uniform disc wear along the entire cutting edge while maintaining its sharpening throughout its entire service life. To protect against counterfeiting, the manufacturer's stamp is used. Optimum number of disc cutouts for superior soil crumbling and residue cutting.


                                                HUB

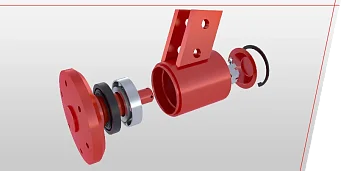

    HUB

    Design of hub of cutting unit, due to installation of a collar with a cassette seal, increases life of bearing by 60% and reduces time for maintenance by up to 50%.

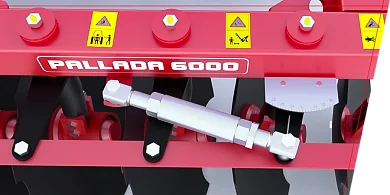

    ADJUSTABLE ENTRY ANGLE=UNIVERSALITY

    The disc harrow design provides independent row adjustment of the disc entry angles from 00 to 300, which allows you to optimize soil cultivation in accordance with different working depths. Thus, this contributes to the improvement of the agrotechnical parameters of soil cultivation, as well as to a decrease in the required tractive effort of the tractor. Bushings are installed on the bar for changing the entry angle of the discs, which makes it easier to adjust the entry angle. A small entry angle provides a shallow surface harrowing, while an increasing of entry angle provides good penetration.


                                                   ADJUSTING THE TILLAGE DEPTH

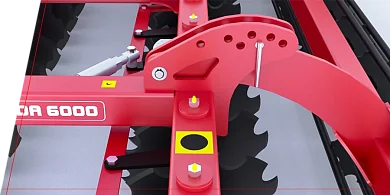

    ADJUSTING THE TILLAGE DEPTH

    New design for adjusting tillage depth by moving pin between holes. Design made it easier to adjust depth of soil cultivation, while increasing durability of the unit.

                                                     RACK


Each harrow disc of the PALLADA  is mounted

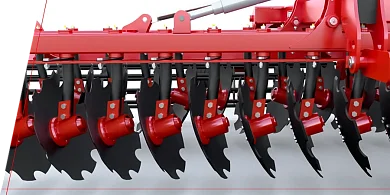

    RACK

    Each harrow disc of the PALLADA is mounted on an individual rack. The absence of a single axis precludes winding of crop residues and clogging of the interdisc space.

                                                     HEAVY DUTY FRAME - LONG LIFE SERVICE


Double-row

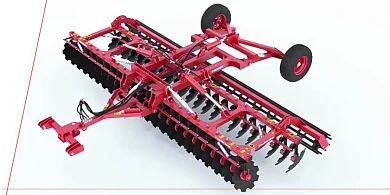

    HEAVY DUTY FRAME - LONG LIFE SERVICE

    Double-row disc harrows of the PALLADA series are equipped with an incredibly strong frame, which ensures a long-life service, even, in difficult conditions.

    Frame was prodused by using high-strength pipes from European steel, which provides reducution of the weight of the frame structure, while increasing its strength and rigidity, as a results, tractors fuel consumption was decreased.


OILER ON EACH HUB


Oiler nipples on each hub ensure durability of unit, and oiler nipples at rack attachmen
    OILER ON EACH HUB

    Oiler nipples on each hub ensure durability of unit, and oiler nipples at rack attachment essembly, preclude clogging with dust and breakdown of the racks and ensure easy setup of unit.


POWDER COATING


Production line was equipped with a powder coating line -Ideal-line (Denmark).

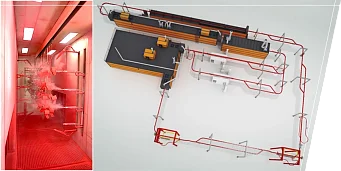

    POWDER COATING

    Production line was equipped with a powder coating line -Ideal-line (Denmark). Painting technology makes it possible to produce high-quality paintwork with a guaranteed service life up to 8 years.

     EASY AND SAFE TRANSPORTATION


Thanks to the unique folding structure, the PALLADA 6000 series dou

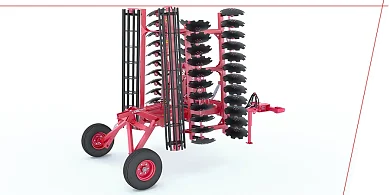

    EASY AND SAFE TRANSPORTATION

    Thanks to the unique folding structure, the PALLADA 6000 series double-row disc harrows with a working width of 6 m could be quickly configured into transport position for easy transportations on the public roads. The folding structure lowers the mashinary center of gravity for safe maneuvering.


HIGH-STRENGTH HARDWARE


The usege of hardware with a strength class, at least 8.8, ensures reli

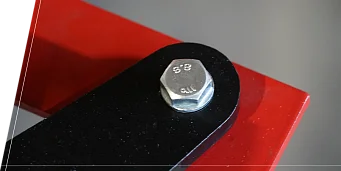

    HIGH-STRENGTH HARDWARE

    The usege of hardware with a strength class, at least 8.8, ensures reliability and durability of exploitation.

  • Aggregate type trailed
    Operating width, m 6
    Driving speed, km/hr 12
    Performance, ha/hr 7.2
    Tilling depth, mm 120±20
    Disc approach angle, degree 0 - 30
    Distance between disc rows, mm 950
    Tool diameter, mm 560
    Distance between disc blades, mm 250
    Travelling speed, km/hr 20
    Number of operating tools, pcs. 46
    Overall dimensions for transport, mm 4 555 х 2 880 х 3 650
    Overall dimensions in position, mm 4 900 х 6 110 х 1 295
    Aggregated with tractors, max, hp 180
    Constructional weight, kg 3 208

* All data and drawings are approximate and non-binding. All rights, to make technical changes to the design reserving to us. Check in more information with the regional manager.
